ET42

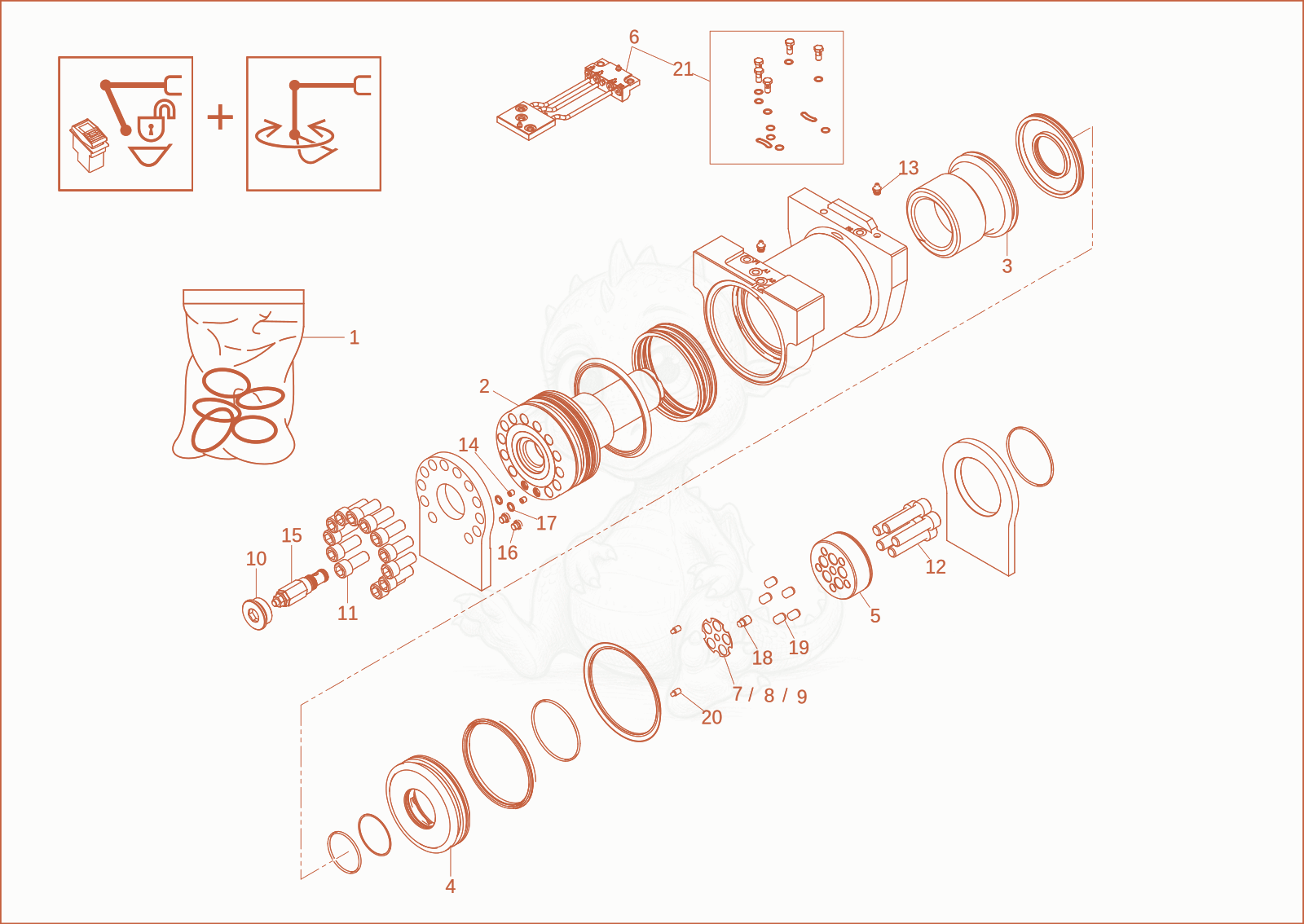

ET42 Powertilt (Option) Diagram

Exploded parts diagram of the Powertilt (Option) of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000457298Not stocked
    seal kit×1
  • 21000480052
    $2,833.91
    shaft - 1000480052×1
  • 31000480053
    $1,323.49
    bellow - 1000480053×1
  • 41000480054
    $337.22
    cap - 1000480054×1
  • 51000480055
    $215.27
    hub - 1000480055×1
  • 61000480056Not stocked
    manifold×1
  • 71000480057
    $16.47
    washer - 1000480057×1
  • 81000480058
    $16.47
    washer - 1000480058×1
  • 91000480059
    $26.37
    washer - 1000480059×1
  • 101000288025
    $40.81
    PLUG - 1000288025×1
  • 111000423301Not stocked
    screw×14
  • 121000480061
    $19.20
    screw - 1000480061×5
  • 131000251482Not stocked
    grease nipple×2
  • 141000479916
    $13.70
    Plug - 1000479916×2
  • 151000251511
    $994.75
    pressure limit reliefvalve - 1000251511×1
  • 161000251470Not stocked
    protecting cap×2
  • 171000479824
    $20.27
    O-ring - 1000479824×2
  • 181000479804
    $13.70
    screw - 1000479804×1
  • 191000480067
    $13.70
    pin - 1000480067×5
  • 201000480062
    $13.70
    screw - 1000480062×2
  • 211000498130
    $237.80
    Kit - 1000498130×1
