ET42

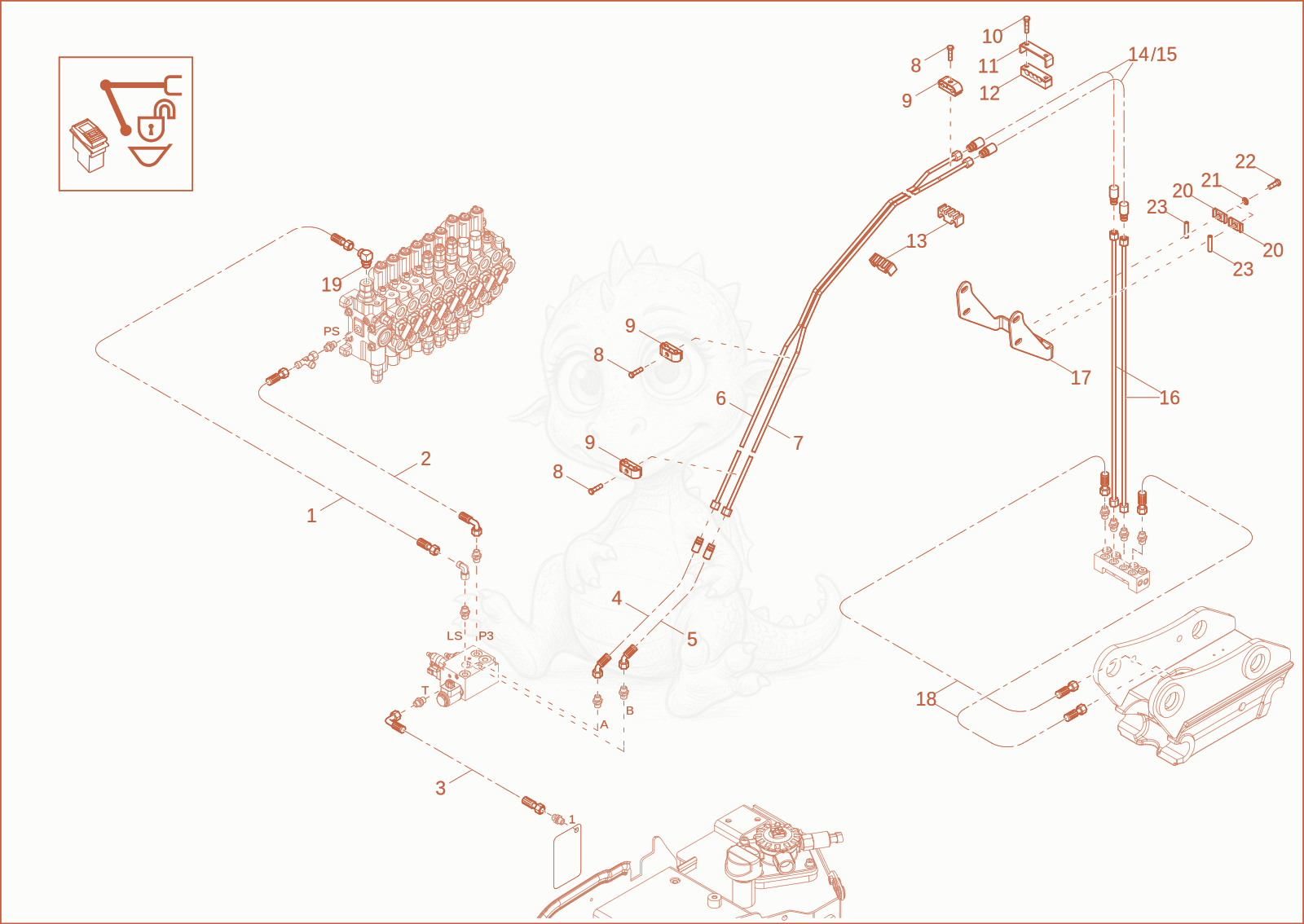

ET42 EASY LOCK INSTALLATION (OPTION) Diagram

Exploded parts diagram of the EASY LOCK INSTALLATION (OPTION) of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000461074Not stocked
    Hose×1
  • 21000414119Not stocked
    Hose×1
  • 31000432588Not stocked
    Hose×1
  • 41000414199Not stocked
    Hose×1
  • 51000414133Not stocked
    Hose×1
  • 61000421975Not stocked
    pipe line×1
  • 71000421978Not stocked
    pipe line×1
  • 81000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×3
  • 91000388648Not stocked
    clamp×3
  • 101000085391
    $0.91
    hex screw - 1000085391×2
  • 111000446318
    $37.43
    holder - 1000446318×1
  • 121000446317Not stocked
    clamp×1
  • 131000412704Not stocked
    protecting rubber×2
  • 141000403769Not stocked
    Hose×2
  • 151000403767Not stocked
    Hose×2
  • 161000393173Not stocked
    pipe line×2
  • 171000392818Not stocked
    basis plate×1
  • 181000426320Not stocked
    Hose×2
  • 191000460985Not stocked
    screw joint×1
  • 201000272763
    $19.14
    pipe clamp - 1000272763×2
  • 211000015431Not stocked
    washer×2
  • 221000013008Not stocked
    hex screw×2
  • 231000085652
    $0.84
    cotter pin - 1000085652×2
