ET42

ET42 AUXILIARY HYDRAULICS OPERATION Diagram

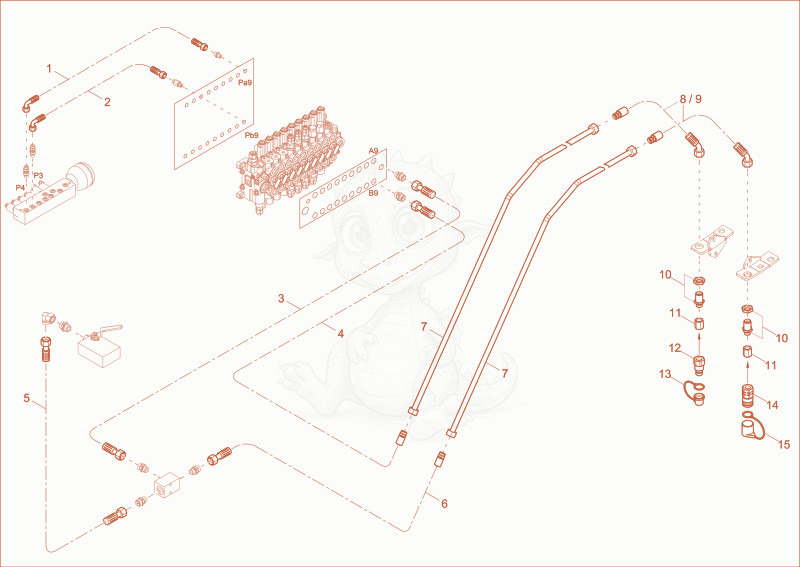

Exploded parts diagram of the AUXILIARY HYDRAULICS OPERATION of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000448570Not stocked
    Hose×1
  • 21000414210Not stocked
    Hose×1
  • 31000448445Not stocked
    Hose×1
  • 41000448446Not stocked
    Hose×1
  • 51000448448Not stocked
    Hose×1
  • 61000448447Not stocked
    Hose×1
  • 71000445119Not stocked
    pipe line×2
  • 81000403755Not stocked
    Hose×2
  • 91000403759Not stocked
    Hose×2
  • 101000115019
    $51.44
    SCHOTTVERSCHRAUBUNG 18L 1/2" - 1000115019×2
  • 111000082961
    $15.76
    locking cap - 1000082961×2
  • 121000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 131000109417
    $10.12
    Protection cap - 1000109417×1
  • 141000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 151000109416
    $8.43
    Protection cap - 1000109416×1
