ET42

ET42 controllever carrier right Diagram

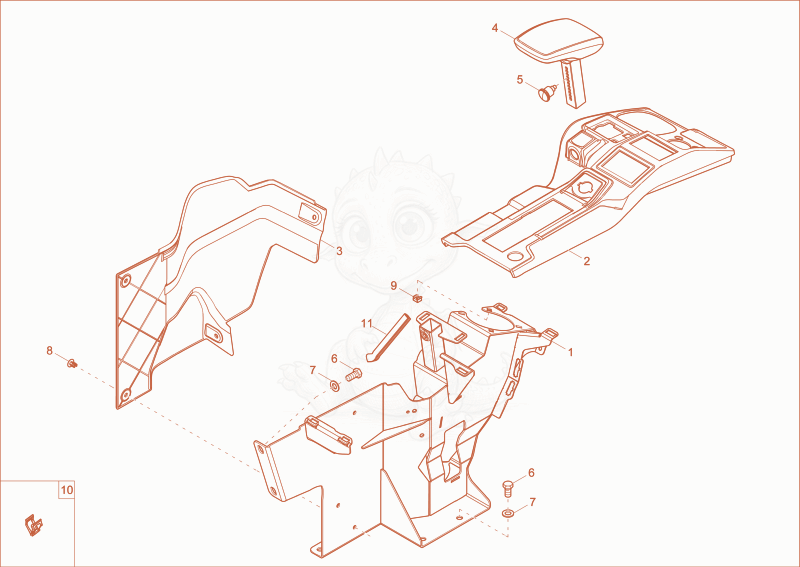

Exploded parts diagram of the controllever carrier right of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000446186Not stocked
    console×1
  • 21000455989Not stocked
    trim×1
  • 31000394510Not stocked
    side trim×1
  • 41000534932Not stocked
    arm rest×1
  • 51000247956
    $27.90
    pin detent - 1000247956×1
  • 61000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
  • 71000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 81000376331Not stocked
    screw×4
  • 91000094952
    $0.75
    cage nut M6 2,6-3,5 - 1000094952×4
  • 101000429255Not stocked
    clamp×7
  • 111000098163
    $5.21
    edge protection - 1000098163×0.2
