ET42

ET42 CABIN FRAME 2 (OPTION) Diagram

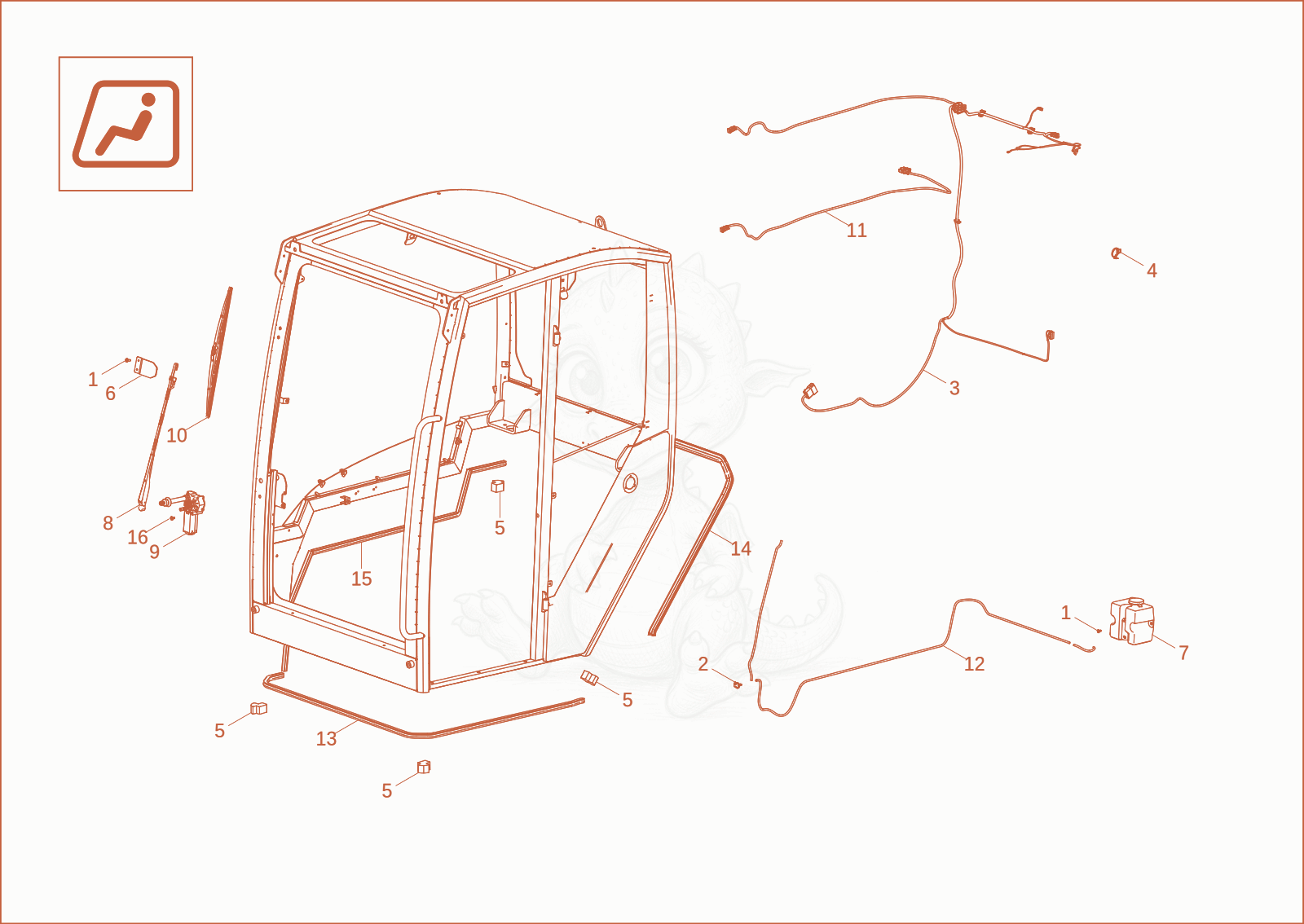

Exploded parts diagram of the CABIN FRAME 2 (OPTION) of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000326519Not stocked
    flat head screw×4
  • 21000403528Not stocked
    bushing tube×1
  • 31000442714Not stocked
    wiring harness×1
  • 41000399431Not stocked
    mounting×1
  • 51000378355Not stocked
    lock plug×4
  • 61000457952Not stocked
    plate×1
  • 71000110420
    $82.29
    wash tank Incl. pump - 1000110420×1
  • 81000403554Not stocked
    wiper arm×1
  • 91000403552Not stocked
    wiper motor×1
  • 101000403553
    $30.66
    WIPER BLADE - 1000403553×1
  • 111000442720Not stocked
    cable×1
  • 121000116965
    $7.54
    water hose - 1000116965×2
  • 131000365097Not stocked
    sealing profile×2
  • 141000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×1.7
  • 151000365097Not stocked
    sealing profile×1.7
  • 161000326518Not stocked
    flat head screw×1
