ET42

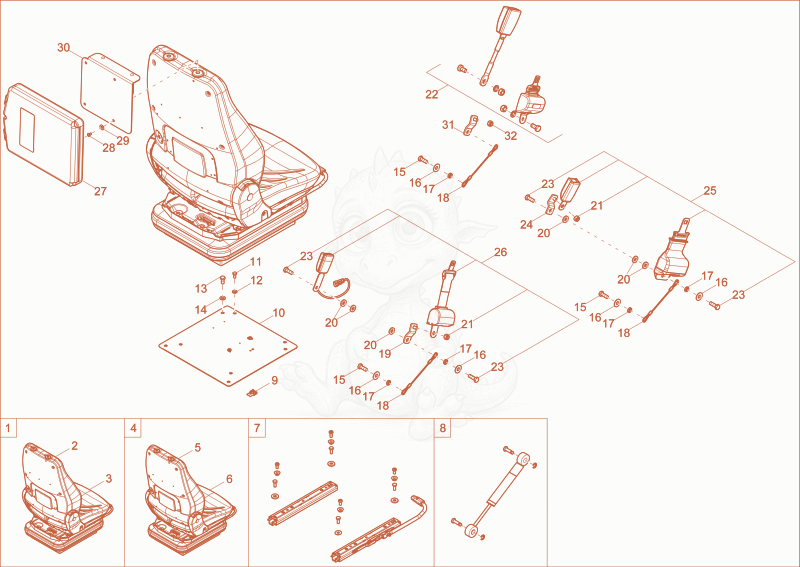

ET42 DRIVER SEAT Diagram

Exploded parts diagram of the DRIVER SEAT of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000391845Not stocked
    drivers seat×1
  • 21000452993Not stocked
    back cushion×1
  • 31000453173Not stocked
    seat upholstery×1
  • 41000391947Not stocked
    drivers seat×1
  • 51000453171Not stocked
    back cushion tissue×1
  • 61000453174Not stocked
    seat upholstery×1
  • 71000453172Not stocked
    rail×1
  • 81000453175Not stocked
    shock absorber×1
  • 91000293439Not stocked
    clip×1
  • 101000448046Not stocked
    cover×1
  • 111000019136Not stocked
    hex screw×4
  • 121000015448Not stocked
    washer×4
  • 131000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 141000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 151000015371Not stocked
    hex screw×1
  • 161000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 171000435962
    $4.91
    sleeve - 1000435962×2
  • 181000435983Not stocked
    fasten rope×1
  • 191000371454Not stocked
    adapter×1
  • 201000371455Not stocked
    shim×3
  • 211000357535Not stocked
    hexagon nut×1
  • 221000541881Not stocked
    belt×1
  • 231000436810Not stocked
    screw×2
  • 241000449730Not stocked
    adapter×1
  • 251000260793
    $466.88
    Lap belt - 1000260793×1
  • 261000391421Not stocked
    safety belt×1
  • 271000081206
    $40.96
    documents box - 1000081206×1
  • 281000326519Not stocked
    flat head screw×4
  • 291000233504
    $2.45
    washer - 1000233504×4
  • 301000457931Not stocked
    bracket×1
  • 311000357607
    $25.33
    Adapter - 1000357607×1
  • 321000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
