ET42

ET42 Components (Option air condition system) Diagram

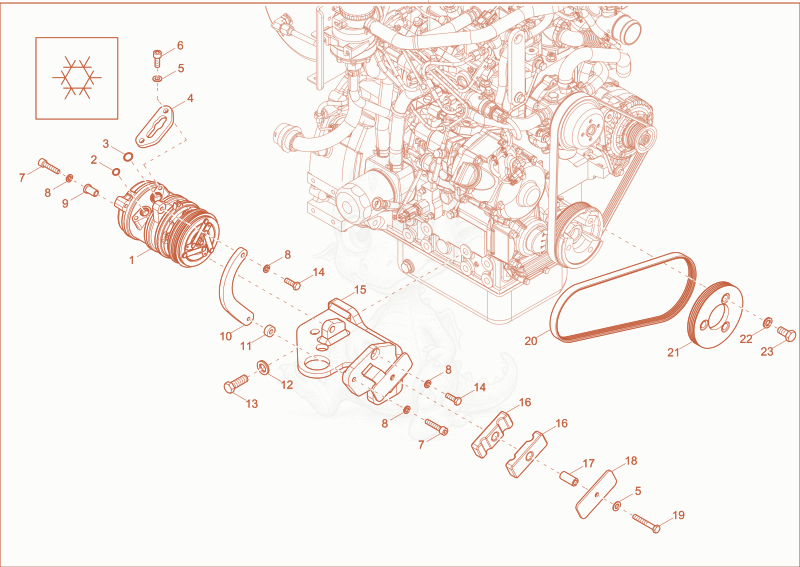

Exploded parts diagram of the Components (Option air condition system) of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000309964Not stocked
    compressor aircondition×1
  • 21000333125
    $7.22
    O-RING - 1000333125×1
  • 31000333126
    $6.97
    O-RING - 1000333126×1
  • 41000402253
    $34.64
    plate - 1000402253×1
  • 51000015448Not stocked
    washer×3
  • 61000022386Not stocked
    cheese head screw×2
  • 71000128080
    $1.46
    cheese head screw M8x40-8.8 A2C DIN912 - 1000128080×2
  • 81000094995
    $0.93
    Nord-Lock disc NL8 - 1000094995×4
  • 91000311725Not stocked
    sleeve×1
  • 101000402264Not stocked
    holder×1
  • 111000434556
    $6.79
    Sleeve - 1000434556×1
  • 121000015453Not stocked
    northlock disc×4
  • 131000452823Not stocked
    screw×4
  • 141000015343Not stocked
    hex screw×2
  • 151000448156Not stocked
    mounting bracket×1
  • 161000403794Not stocked
    rubber piece×2
  • 171000403792
    $34.69
    Sleeve - 1000403792×1
  • 181000403793Not stocked
    cover plate×1
  • 191000085393
    $0.93
    hex screw - 1000085393×1
  • 201000397532
    $39.08
    V-belt - 1000397532×1
  • 211000428875Not stocked
    belt pulley×1
  • 221000015450Not stocked
    northlock disc×3
  • 231000085418
    $9.74
    hex screw - 1000085418×3
