EZ36

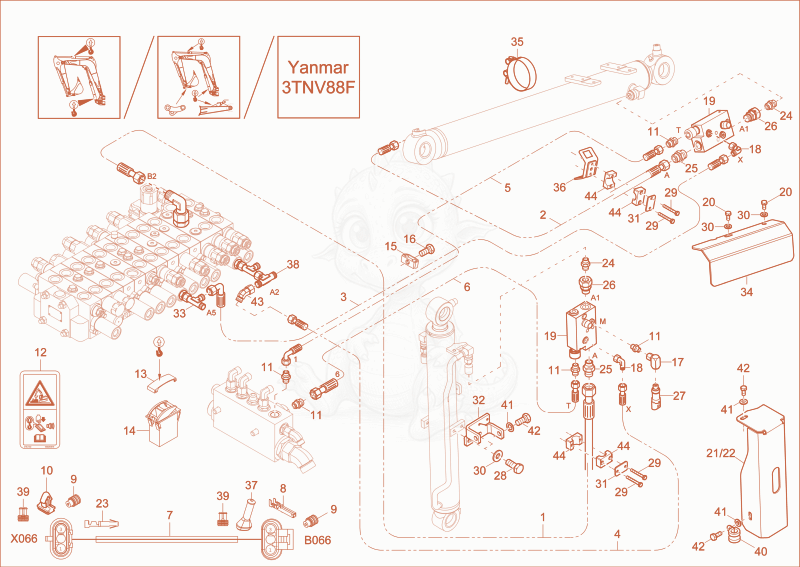

EZ36 OVERLAOD SYSTEM (OPTION) Diagram

Exploded parts diagram of the OVERLAOD SYSTEM (OPTION) of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000397924Not stocked
    Hose×1
  • 21000380267Not stocked
    Hose×1
  • 31000397168Not stocked
    Hose×1
  • 41000380259Not stocked
    Hose×1
  • 51000387519Not stocked
    Hose×1
  • 61000380274Not stocked
    Hose×1
  • 71000454948Not stocked
    cable×1
  • 81000051990Not stocked
    bushing contact×2
  • 91000128773
    $0.32
    Plug - 1000128773×2
  • 101000391436
    $2.56
    support - 1000391436×1
  • 111000015488Not stocked
    screw joint×4
  • 121000264916
    $18.83
    STICKER - 1000264916×1
  • 131000264530
    $11.57
    symbol - 1000264530×1
  • 141000353496Not stocked
    tilt switch×1
  • 151000369070Not stocked
    clamp×1
  • 161000015343Not stocked
    hex screw×1
  • 171000268287
    $42.14
    WINKELVERSCHRAUBUNG ¼IG-8L - 1000268287×1
  • 181000060903
    $27.33
    WEE8LROMDA3C - 1000060903×2
  • 191000362676Not stocked
    valve×2
  • 201000013009Not stocked
    hex screw×2
  • 211000373923Not stocked
    protection plate×1
  • 221000405727Not stocked
    protection plate×1
  • 231000155228
    $1.41
    Pin contact - 1000155228×2
  • 241000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 251000015494Not stocked
    screw joint×2
  • 261000015524
    $9.05
    EGE18LREDA3C - 1000015524×2
  • 271000312658Not stocked
    pressure sensor×1
  • 281000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 291000085310
    $0.78
    hex screw - 1000085310×4
  • 301000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 311000015623Not stocked
    cover plate×2
  • 321000373922Not stocked
    fixing plate×1
  • 331000015515Not stocked
    screw joint×1
  • 341000393997Not stocked
    protection plate×1
  • 351000238318
    $26.71
    Pipe Clamp - 1000238318×1
  • 361000246780
    $31.17
    bracket - 1000246780×1
  • 371000126051
    $7.95
    PROTECTING CAP - 1000126051×1
  • 381000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 391000052672Not stocked
    seal×4
  • 401000083280
    $7.06
    HOSE CLAMP - 1000083280×1
  • 411000015434Not stocked
    washer×3
  • 421000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 431000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
  • 441000083316
    $0.85
    CLAMP BODY - 1000083316×2
  • B0661000051989Not stocked
    bushing housing×1
  • X0661000265293
    $3.49
    Pin housing - 1000265293×1
