EZ36

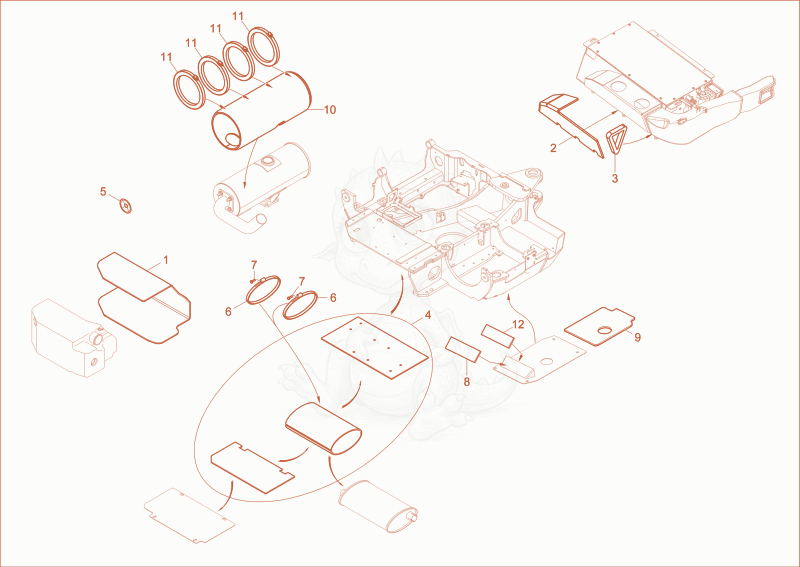

EZ36 Insulating mat Diagram

Exploded parts diagram of the Insulating mat of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000233399
    $218.71
    insulating mat tank - 1000233399×1
  • 21000377690Not stocked
    insulating mat×1
  • 31000378443Not stocked
    insulating mat×1
  • 41000391206
    $346.76
    insulating mat set - 1000391206×1
  • 51000274271
    $2.04
    insulating washer - 1000274271×1
  • 61000147776
    $3.89
    HOSE CLAMP - 1000147776×2
  • 71000085414
    $0.98
    hex screw - 1000085414×2
  • 81000153470
    $10.39
    insulating mat - 1000153470×1
  • 91000370368Not stocked
    insulating mat×1
  • 101000405433Not stocked
    insulating mat×1
  • 111000114834
    $7.44
    HOSE CLAMP - 1000114834×4
  • 121000153501
    $9.81
    insulating mat - 1000153501×1
