EZ36

EZ36 BOOM OFFSET CYLINDER Diagram

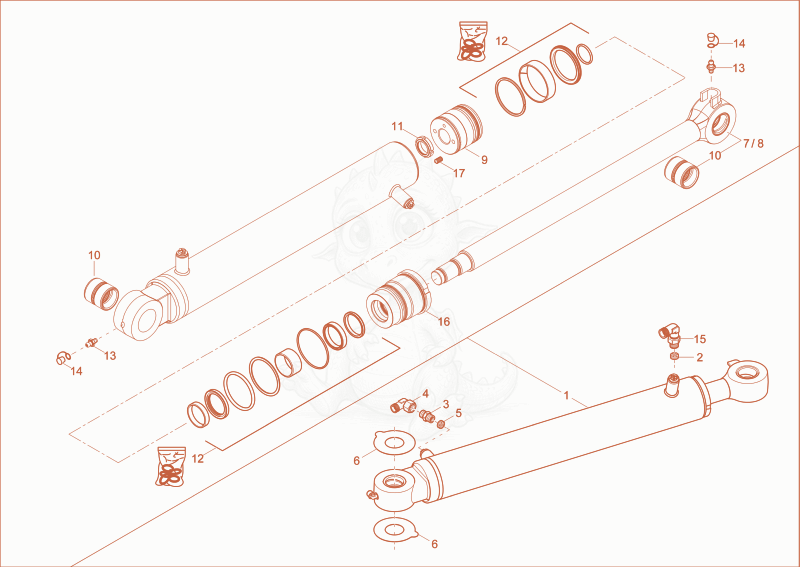

Exploded parts diagram of the BOOM OFFSET CYLINDER of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458354Not stocked
    boom offset cylinder×1
  • 21000080119
    $16.37
    THROTTLE - 1000080119×1
  • 31000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 41000000573Not stocked
    screw joint×1
  • 51000067429Not stocked
    throttle×1
  • 61000370167Not stocked
    shim×2
  • 71000399930Not stocked
    piston rod×1
  • 81000478413Not stocked
    piston rod×1
  • 91000399483
    $98.08
    Piston - 1000399483×1
  • 101000019750Not stocked
    steel bushing×2
  • 111000399496
    $42.08
    Nut - 1000399496×1
  • 121000399474Not stocked
    seal kit×1
  • 131000015476Not stocked
    grease nipple×2
  • 141000015480Not stocked
    cap grease nipple×2
  • 151000151592
    $19.52
    WEE12LROMDA3C - 1000151592×1
  • 161000399491Not stocked
    guide bushing×1
  • 171000015384Not stocked
    thread pin×1
