EZ36

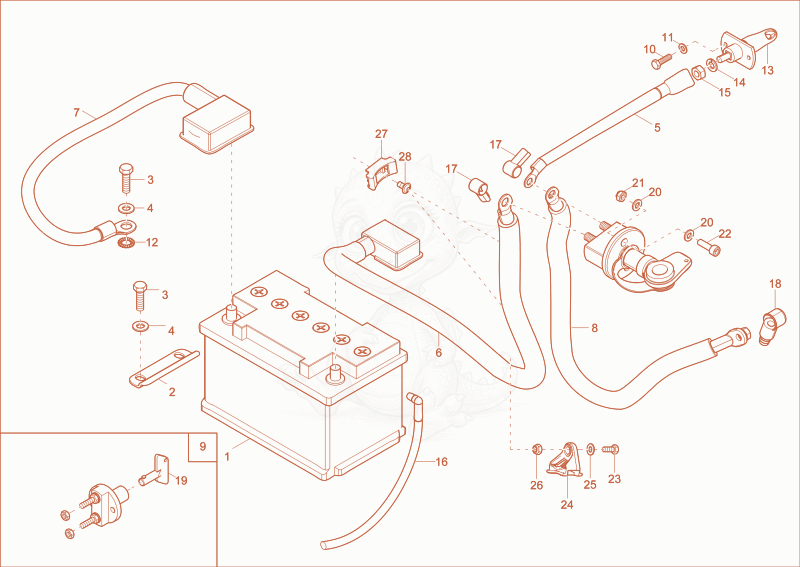

EZ36 BATTERY Diagram

Exploded parts diagram of the BATTERY of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000021074Not stocked
    battery×1
  • 21000061850Not stocked
    bracket battery×1
  • 31000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 51000391223Not stocked
    plus cable×1
  • 61000391221Not stocked
    battery cable×1
  • 71000069051Not stocked
    battery cable×1
  • 81000376123Not stocked
    plus cable×1
  • 91000254627
    $36.00
    BATTERY DISCONNECT SWITCH COMPLETE - 1000254627×1
  • 101000018400Not stocked
    hex screw×2
  • 111000015430Not stocked
    u-washer×2
  • 121000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×1
  • 131000297164
    $64.61
    plug - 1000297164×1
  • 141000022016Not stocked
    spring washer×1
  • 151000015407Not stocked
    hexagon nut×1
  • 161000360756Not stocked
    hose×1
  • 171000081683
    $6.71
    protecting cap starter cable - 1000081683×2
  • 181000063176Not stocked
    protecting cap×1
  • 191000084909
    $8.47
    cutoff switch key - 1000084909×1
  • 201000015430Not stocked
    u-washer×4
  • 211000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 221000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 231000013008Not stocked
    hex screw×1
  • 241000357426Not stocked
    sockets×1
  • 251000015431Not stocked
    washer×1
  • 261000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 271000282739
    $2.12
    sockets - 1000282739×3
  • 281000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×3
