EZ36

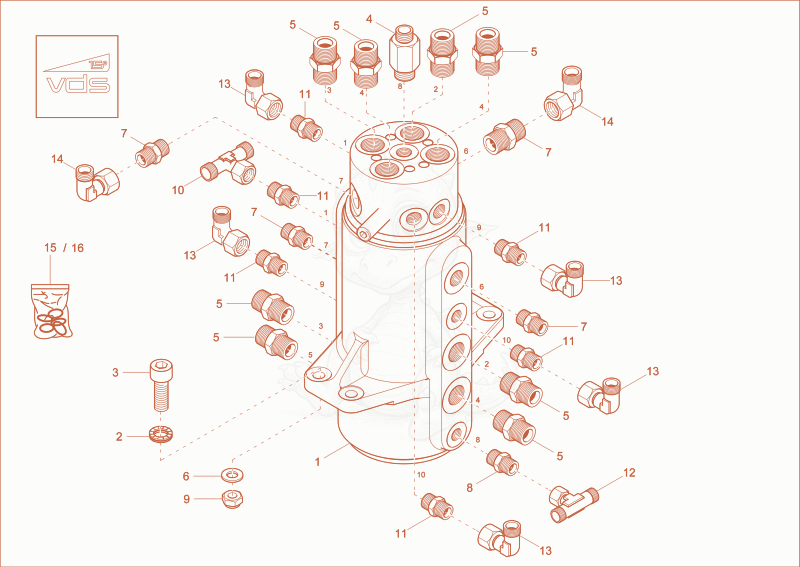

EZ36 rotary junction Diagram

Exploded parts diagram of the rotary junction of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000417822Not stocked
    rotary junction×1
  • 21000015449Not stocked
    northlock disc×4
  • 31000047888Not stocked
    hex screw×4
  • 41000248875
    $27.91
    extension - 1000248875×1
  • 51000015494Not stocked
    screw joint×8
  • washer 10,5 A2C DIN125 - 1000015432×4
  • 71000015491Not stocked
    screw joint×4
  • 81000015490Not stocked
    screw joint×1
  • nut M10-8 A2C-DIN985 - 1000015408×4
  • 101000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 111000015488Not stocked
    screw joint×6
  • 121000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 131000000542
    $11.08
    EW08LOMD - 1000000542×5
  • 141000015510Not stocked
    screw joint×2
  • 151000397729Not stocked
    seal kit×1
  • 161000434188Not stocked
    seal kit×1
