EZ36

EZ36 Easy Lock Powertlit (Option) Diagram

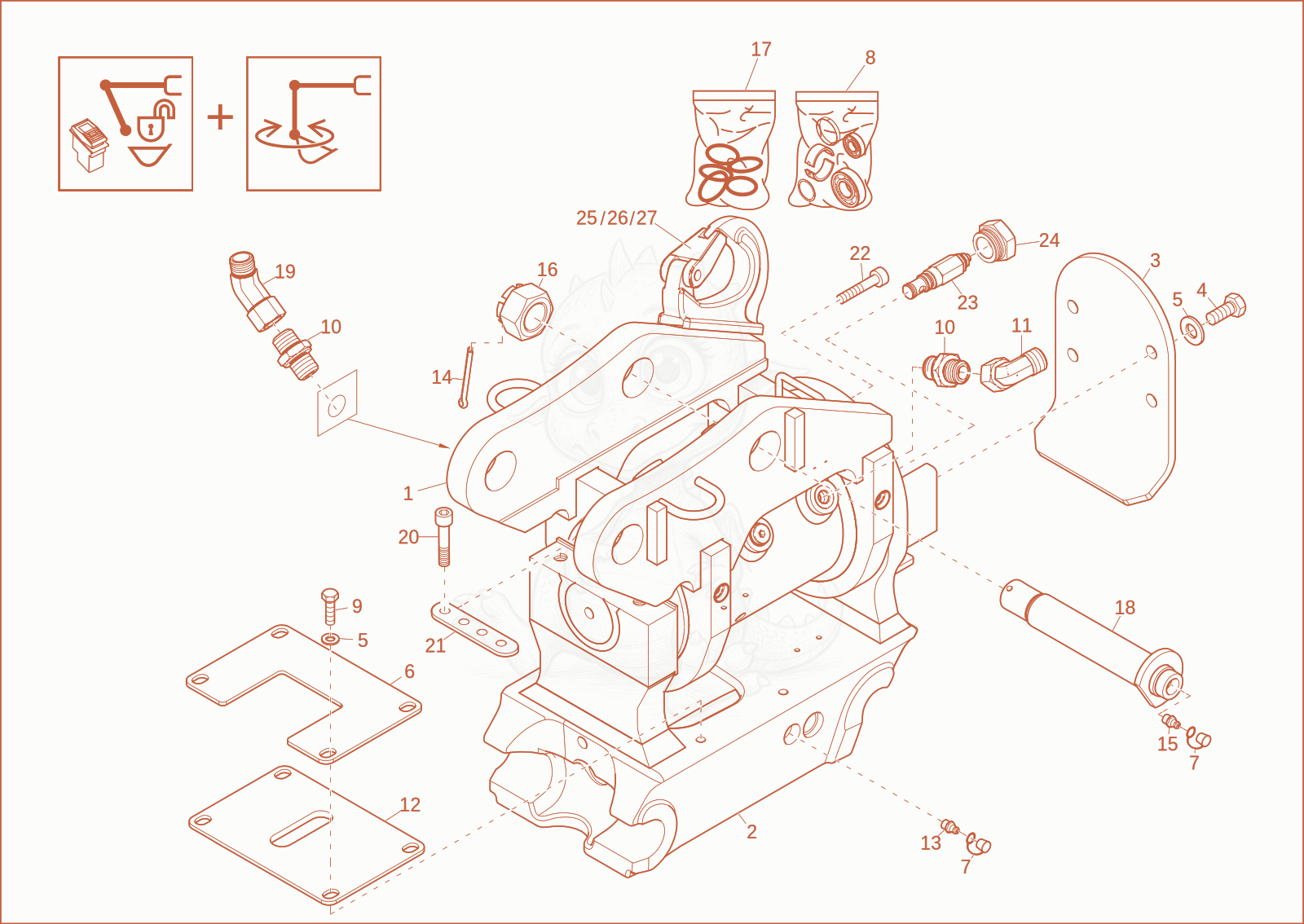

Exploded parts diagram of the Easy Lock Powertlit (Option) of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000246434
    $4,092.12
    Powertilt 1000246434×1
  • 21000265811
    $1,062.42
    Adapterplate 1000265811×1
  • 31000246120
    $181.87
    Protectionplate 1000246120×1
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 61000279951
    $83.81
    COVER - 1000279951×1
  • 71000015480Not stocked
    cap grease nipple×4
  • 81000288029
    $384.04
    BEARING SET - 1000288029×1
  • 91000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 101000015488Not stocked
    screw joint×2
  • 111000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 121000278337
    $105.51
    rubber protection - 1000278337×1
  • 131000015476Not stocked
    grease nipple×2
  • 141000280889
    $1.91
    DINENISO1234-6,3x63-A2C - 1000280889×2
  • 151000015475Not stocked
    grease nipple×2
  • 161000015417
    $12.94
    DIN935-M36-8-A2C - 1000015417×2
  • 171000251517
    $769.58
    SEAL KIT - 1000251517×2
  • 181000296593
    $215.50
    Pin 1000296593×2
  • 191000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
  • 201000328076
    $9.61
    SCREW - 1000328076×4
  • 211000327760
    $50.37
    plate - 1000327760×1
  • 221000328078
    $3.03
    SCREW - 1000328078×4
  • 231000251511
    $994.75
    pressure limit reliefvalve - 1000251511×1
  • 241000288010
    $67.78
    PLUG - 1000288010×1
  • 251000258586
    $223.64
    KIT PowerTilt Gunnebo hook latch - 1000258586×1
  • 261000258581
    $103.82
    KIT PowerTilt Crosby hook latch - 1000258581×1
  • 271000325559Not stocked
    KIT PowerTilt Crosby hook latch×1
