EZ36

EZ36 Easy Lock Powertlit (Option) Diagram

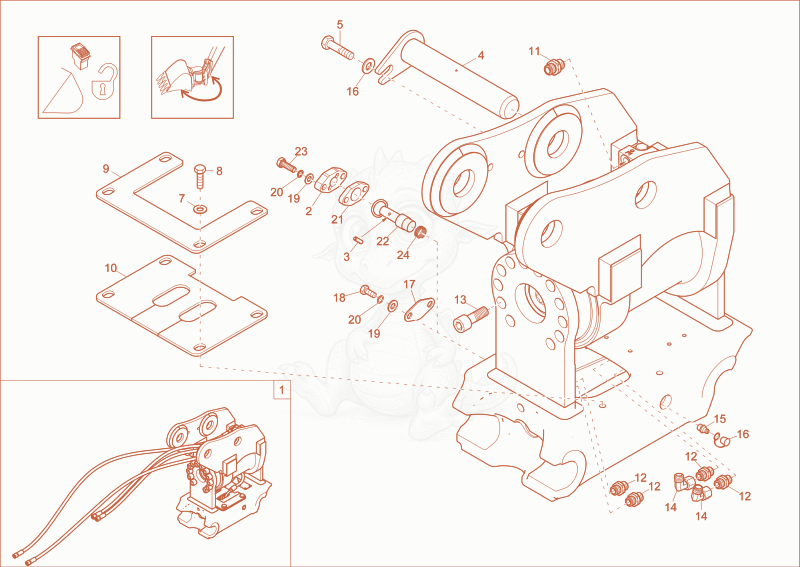

Exploded parts diagram of the Easy Lock Powertlit (Option) of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000423294Not stocked
    POWERTILT×1
  • 21000185303
    $5.92
    cover plate - 1000185303×1
  • 31000175885
    $1.42
    cotter pin - 1000175885×1
  • 41000412968Not stocked
    pin×2
  • 51000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 61000015454Not stocked
    washer×2
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 91000396093Not stocked
    cover×1
  • 101000395788Not stocked
    protecting rubber×1
  • 111000015530Not stocked
    screw joint×4
  • 121000015488Not stocked
    screw joint×4
  • 131000423301Not stocked
    screw×12
  • 141000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 151000015476Not stocked
    grease nipple×2
  • 161000015480Not stocked
    cap grease nipple×2
  • 171000278341
    $7.93
    clamping strap - 1000278341×1
  • 181000019136Not stocked
    hex screw×2
  • 191000015431Not stocked
    washer×2
  • 201000015437Not stocked
    lock washer×2
  • 211000421240Not stocked
    plate×1
  • 221000185290
    $93.54
    PIN - 1000185290×1
  • 231000085391
    $0.91
    hex screw - 1000085391×2
  • 241000185302
    $7.99
    pressure spring - 1000185302×1
