EZ36

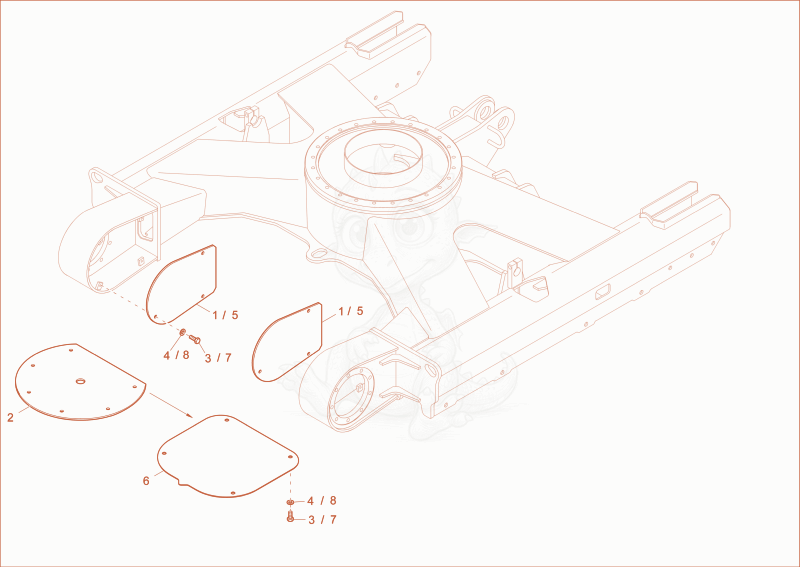

EZ36 cover undercarriage Diagram

Exploded parts diagram of the cover undercarriage of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000368886Not stocked
    drive gear box cover×2
  • 21000368889Not stocked
    cover undercarriage×1
  • 31000015343Not stocked
    hex screw×14
  • 41000015431Not stocked
    washer×14
  • 51000449171Not stocked
    cover×2
  • 61000449175Not stocked
    cover×1
  • 71000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×10
  • 81000094974
    $0.70
    washer M10-DIN134 - 1000094974×10
