EZ36

EZ36 COOLING SYSTEM Diagram

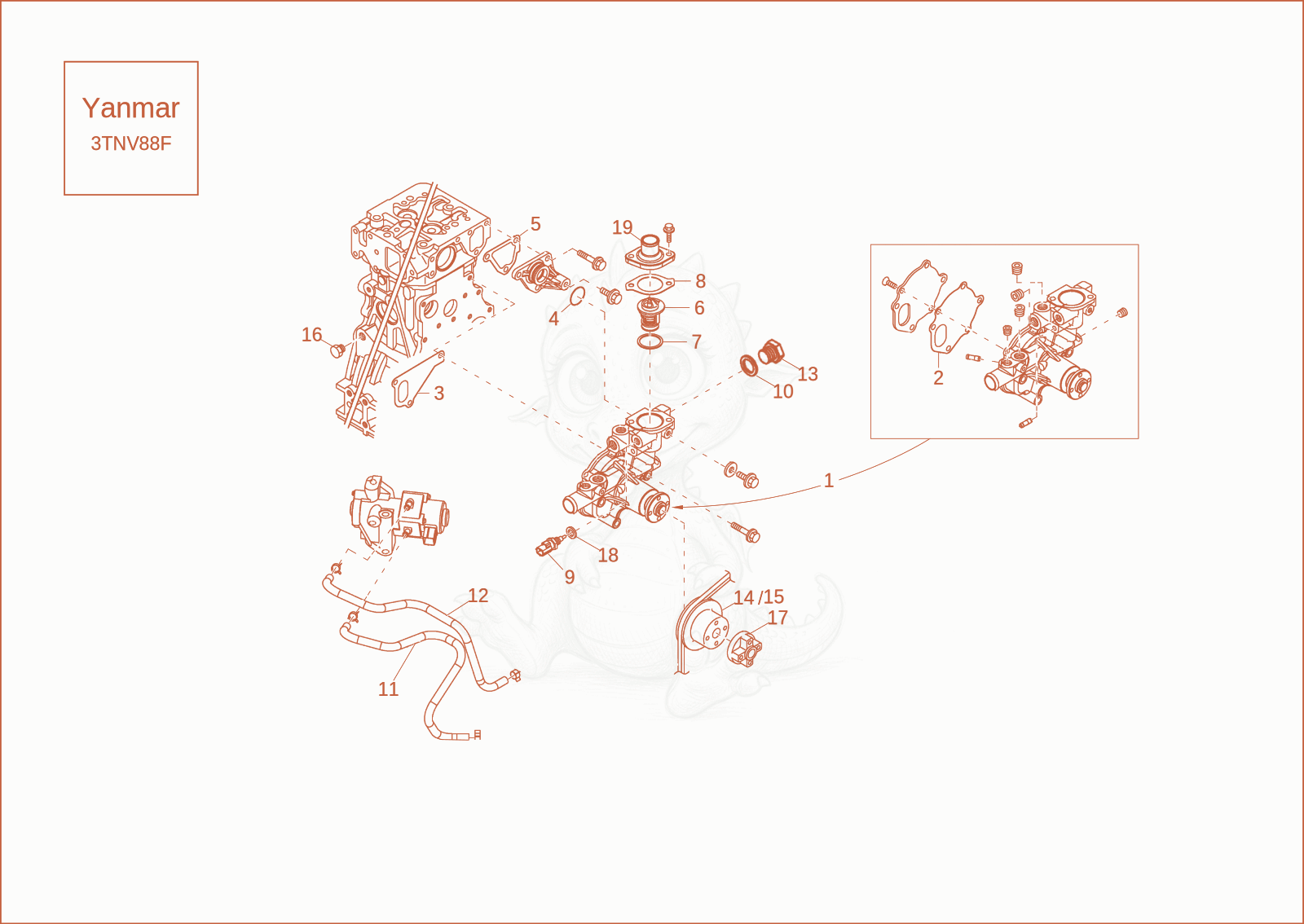

Exploded parts diagram of the COOLING SYSTEM of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000329076Not stocked
    water pump×1
  • 21000104768
    $18.55
    ENGINE GASKET - 1000104768×1
  • 31000098591
    $9.77
    Seal - 1000098591×1
  • 41000099345
    $4.98
    O-RING - 1000099345×1
  • 51000391873Not stocked
    seal×1
  • 61000115256
    $56.38
    thermostat - 1000115256×1
  • 71000012550Not stocked
    gasket thermostat×1
  • 81000012548Not stocked
    gasket thermostat×1
  • 91000183912
    $73.10
    temperature switch - 1000183912×1
  • 101000269598
    $2.24
    copper ring - 1000269598×1
  • 111000329077
    $74.11
    TUBE - 1000329077×1
  • 121000329078
    $74.11
    TUBE - 1000329078×1
  • 131000063425Not stocked
    lock screw×1
  • 141000069177Not stocked
    belt pulley×1
  • 151000085160
    $26.97
    BELT PULLEY - 1000085160×1
  • 161000074223
    $50.71
    drain valve - 1000074223×1
  • 171000149370
    $144.29
    FAN SPACER - 1000149370×1
  • 181000002929Not stocked
    seal ring×1
  • 191000073611
    $84.47
    THERMOSTAT HOUSING - 1000073611×1
