EZ36

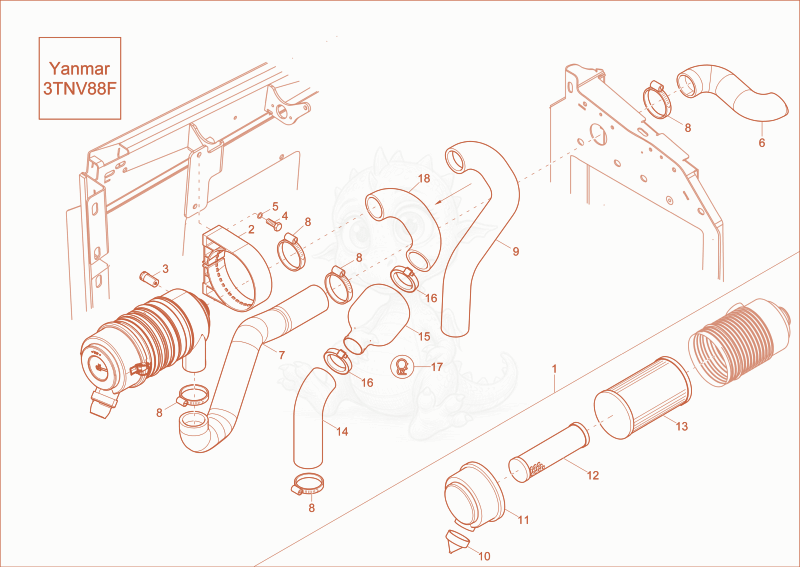

EZ36 air cleaner Diagram

Exploded parts diagram of the air cleaner of a Wacker Neuson EZ36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069108Not stocked
    air cleaner×1
  • 21000034622Not stocked
    bracket×1
  • 31000383212Not stocked
    switch aircleaner×1
  • 41000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 51000013027Not stocked
    washer×2
  • 61000379738Not stocked
    hose air suction×1
  • 71000368314Not stocked
    hose air suction×1
  • 81000083310
    $2.41
    hose clamp 50-70mm - 1000083310×5
  • 91000368316Not stocked
    hose air suction×1
  • 101000084971
    $6.25
    dustexhaust valve - 1000084971×1
  • 111000069131Not stocked
    filter cover×1
  • 121000004567Not stocked
    airfilter insert×1
  • 131000052549Not stocked
    filter cartridge×1
  • 141000410459Not stocked
    air suction hose×1
  • 151000003890
    $97.74
    SILENCER - 1000003890×1
  • 161000083310
    $2.41
    hose clamp 50-70mm - 1000083310×2
  • 171000098198
    $19.56
    RUBBER PROFILE - 1000098198×0.6
  • 181000410458Not stocked
    air suction hose×1
