HI260 HEATER,OIL WITH TANK

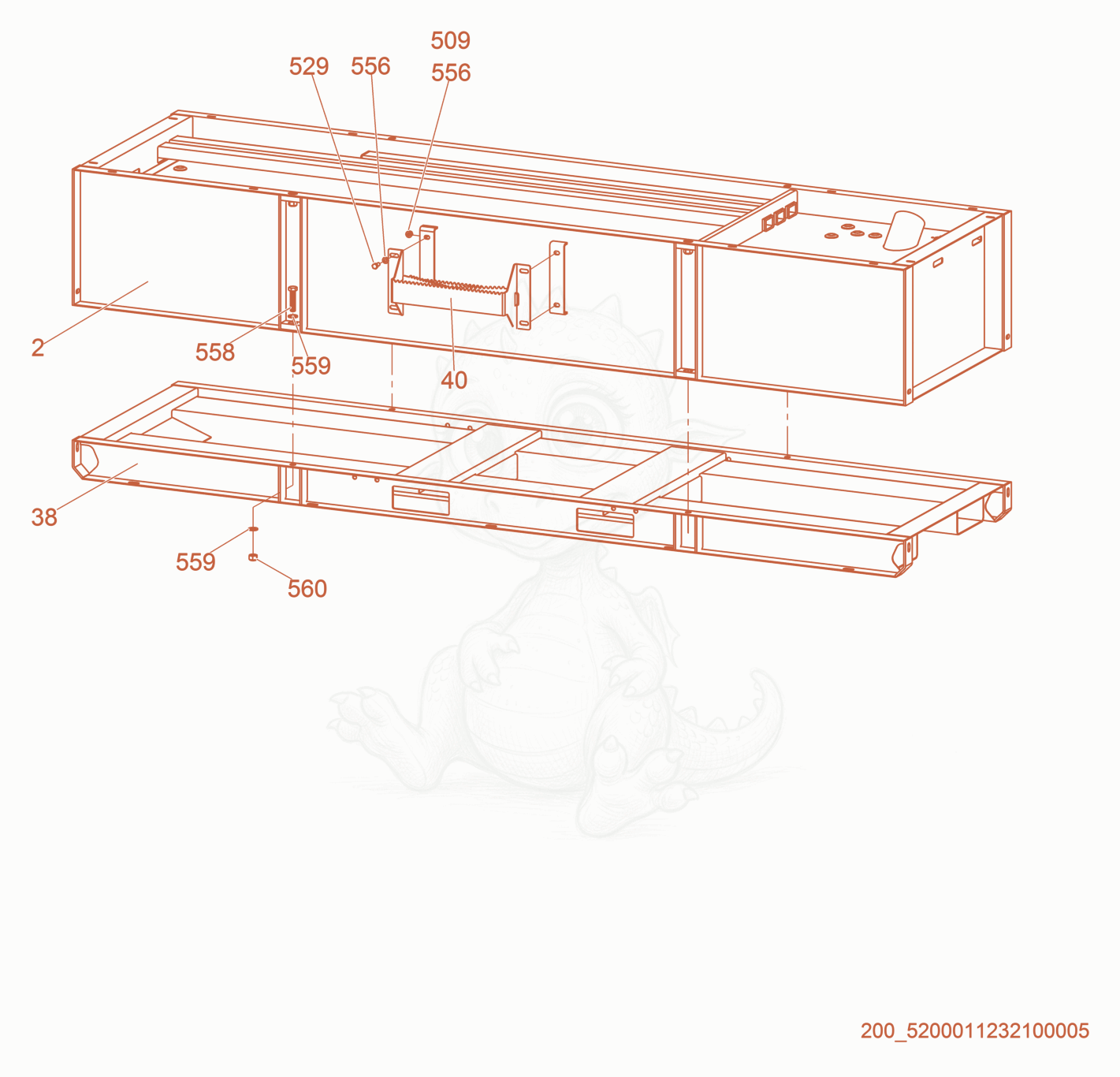

HI260 Skid/Fuel Tank cpl. Diagram

Exploded parts diagram of the Skid/Fuel Tank cpl. of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200007995Not stocked
    Tank×1
  • 385200016145Not stocked
    Frame cpl.×1
  • 405200007353Not stocked
    Bracket×1
  • 5095000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 5295000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×4
  • 5565000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 5585200010097Not stocked
    Screw×4
  • 5595000128369
    $0.52
    WASHER-A17 - 5000128369×12
  • 5605000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×4
