HI260 HEATER,OIL WITH TANK

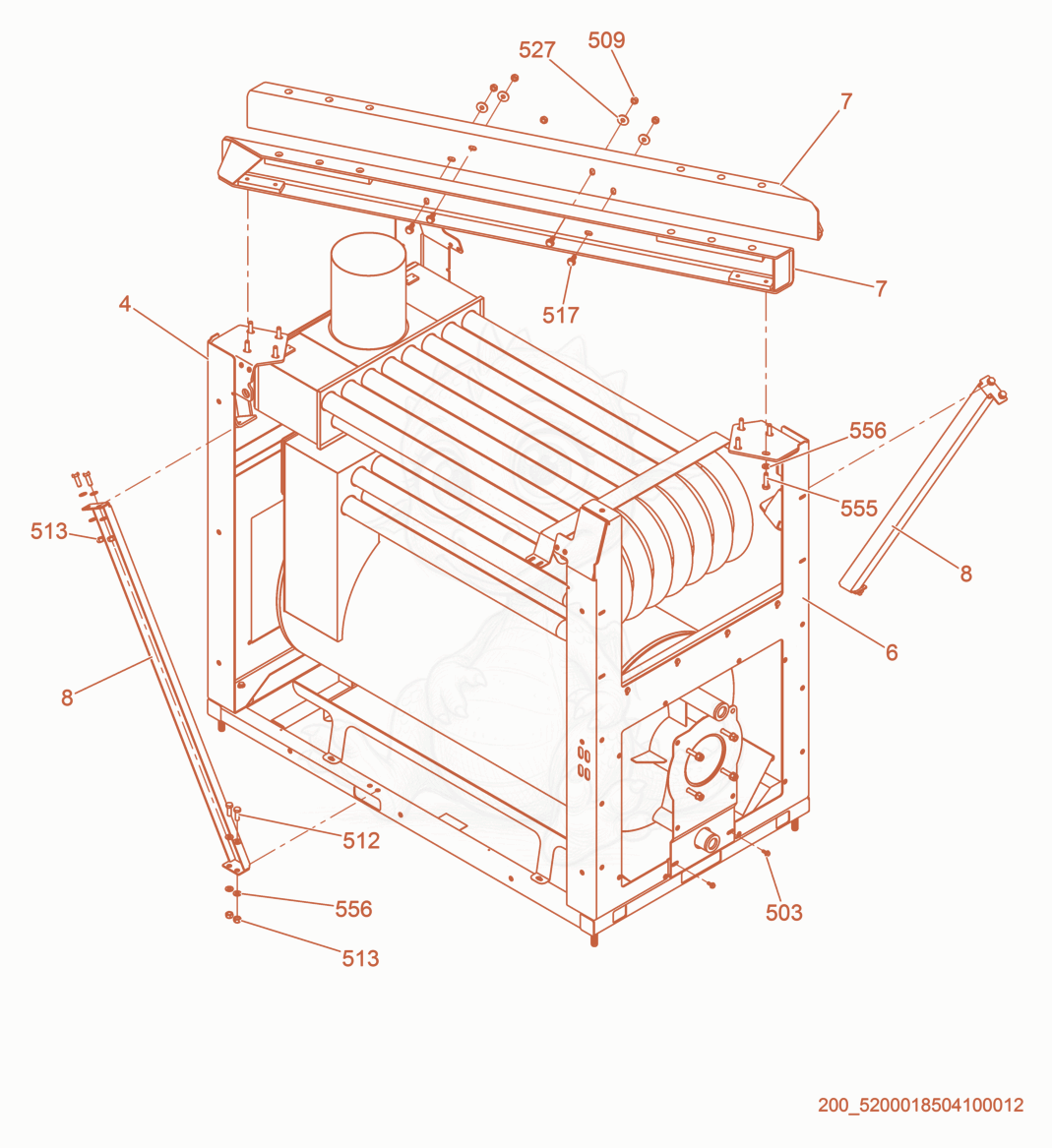

HI260 Heater/Braces (3) Diagram

Exploded parts diagram of the Heater/Braces (3) of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45200008801Not stocked
    Support bracket×1
  • 65200008796Not stocked
    Support bracket×1
  • 75200008880Not stocked
    Channel×2
  • 85200008869Not stocked
    Channel×2
  • 5035000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 5095000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 5125000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×8
  • 5135000182226Not stocked
    Hexagon nut×10
  • 5175000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
  • 5275000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×4
  • 5555000164512Not stocked
    Hexagonal head cap screw×8
  • 5565000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×16
