HI260 HEATER,OIL WITH TANK

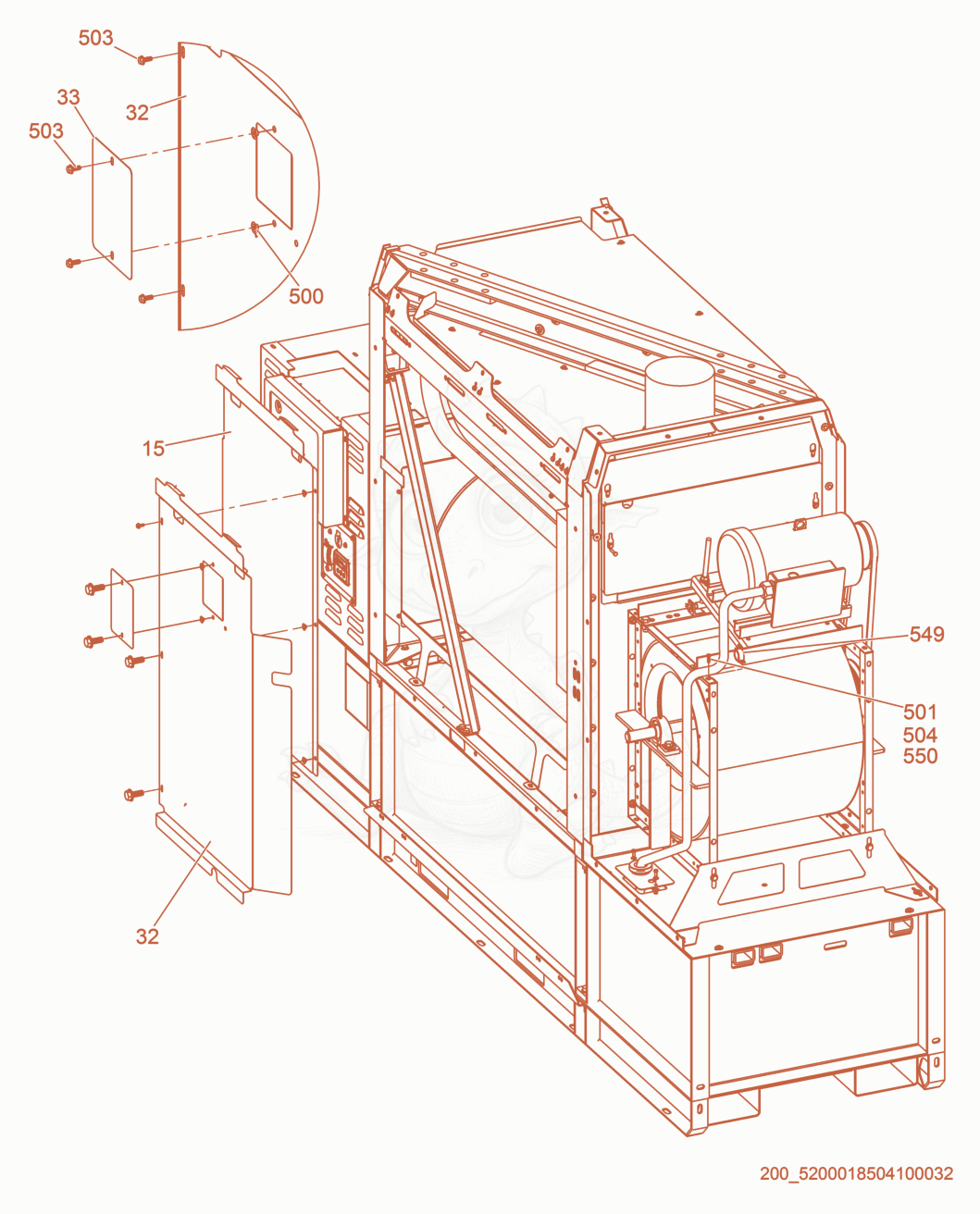

HI260 Side Plates Diagram
- 155200015007Not stockedSide access panel×2
- 325200015005Not stockedPanel-side×2
- 335200015871Not stockedCover×2
- 5005000173960Not stockedNut×2
- 5015000189215Not stockedHexagonal head cap screw×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×5
- 5045000192393Not stockedFlat washer×1
- 5495000168129Not stockedClamp×1
- 5505000177095Not stockedHexagon nut×1
