HI260 HEATER,OIL WITH TANK

HI260 Control Panel cpl. 2 Diagram

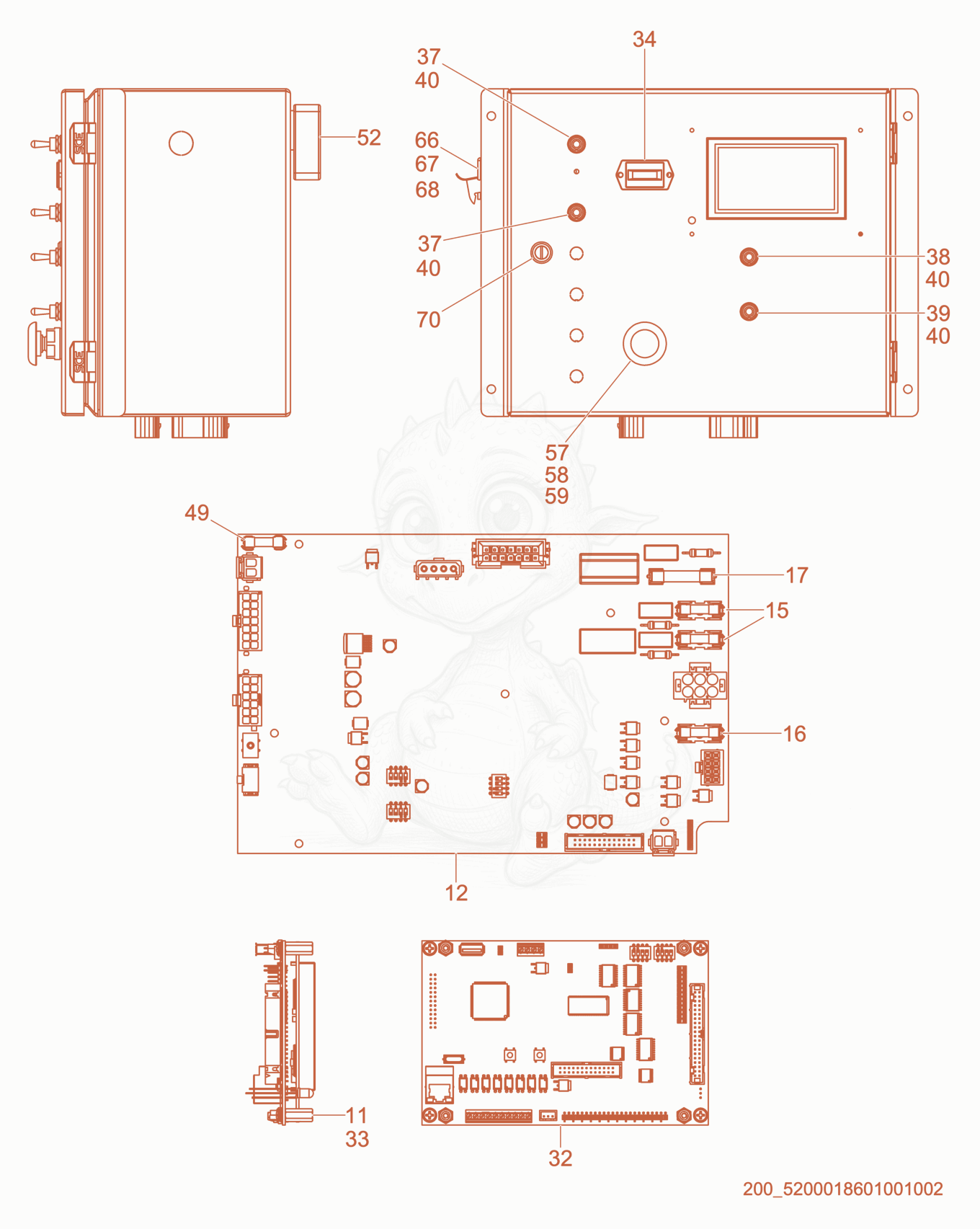

Exploded parts diagram of the Control Panel cpl. 2 of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115200017752Not stocked
    Spacer×4
  • 125200017734Not stocked
    Control board×1
  • 155100013953Not stocked
    Fuse×2
  • 165200017796Not stocked
    Fuse×1
  • 175200017797Not stocked
    Fuse×1
  • 185200017758Not stocked
    Plug housing×2
  • 195200017759Not stocked
    Plug housing×1
  • 205200017760Not stocked
    Plug housing×1
  • 215200017761Not stocked
    Plug housing×1
  • 225200017763Not stocked
    Plug housing×1
  • 325200017733Not stocked
    Display board×1
  • 335200021850Not stocked
    Pan head screw×11
  • 345000173867
    $34.13
    HOURMETER,LCD 2 TERMINAL - 5000173867×1
  • 355200021851Not stocked
    Pan head screw×2
  • 365000180533
    $0.04
    NUT-LOCK M3 HX,ZINC SP=0086710 - 5000180533×2
  • 375200017754Not stocked
    Toggle switch×2
  • 385200017755Not stocked
    Toggle switch×1
  • 395200017756Not stocked
    Toggle switch×1
  • 405200017803Not stocked
    Seal×4
  • 435200017767Not stocked
    Plug housing×1
  • 495100013954Not stocked
    Fuse×1
  • 525200022437Not stocked
    Rail-DIN×1
  • 575200025689Not stocked
    Switch×1
  • 585200025700Not stocked
    Switch×1
  • 595200025701Not stocked
    Switch×1
  • 665000192455
    $8.35
    Connector-Housing,Metal Galv,3P w/groun - 5000192455×1
  • 675000192456
    $7.67
    Connector-Insert,Plug,Female,3P w/groun - 5000192456×1
  • 685200023568Not stocked
    Screw×1
  • 705200010093Not stocked
    Latch×1
