HI260 HEATER,OIL WITH TANK

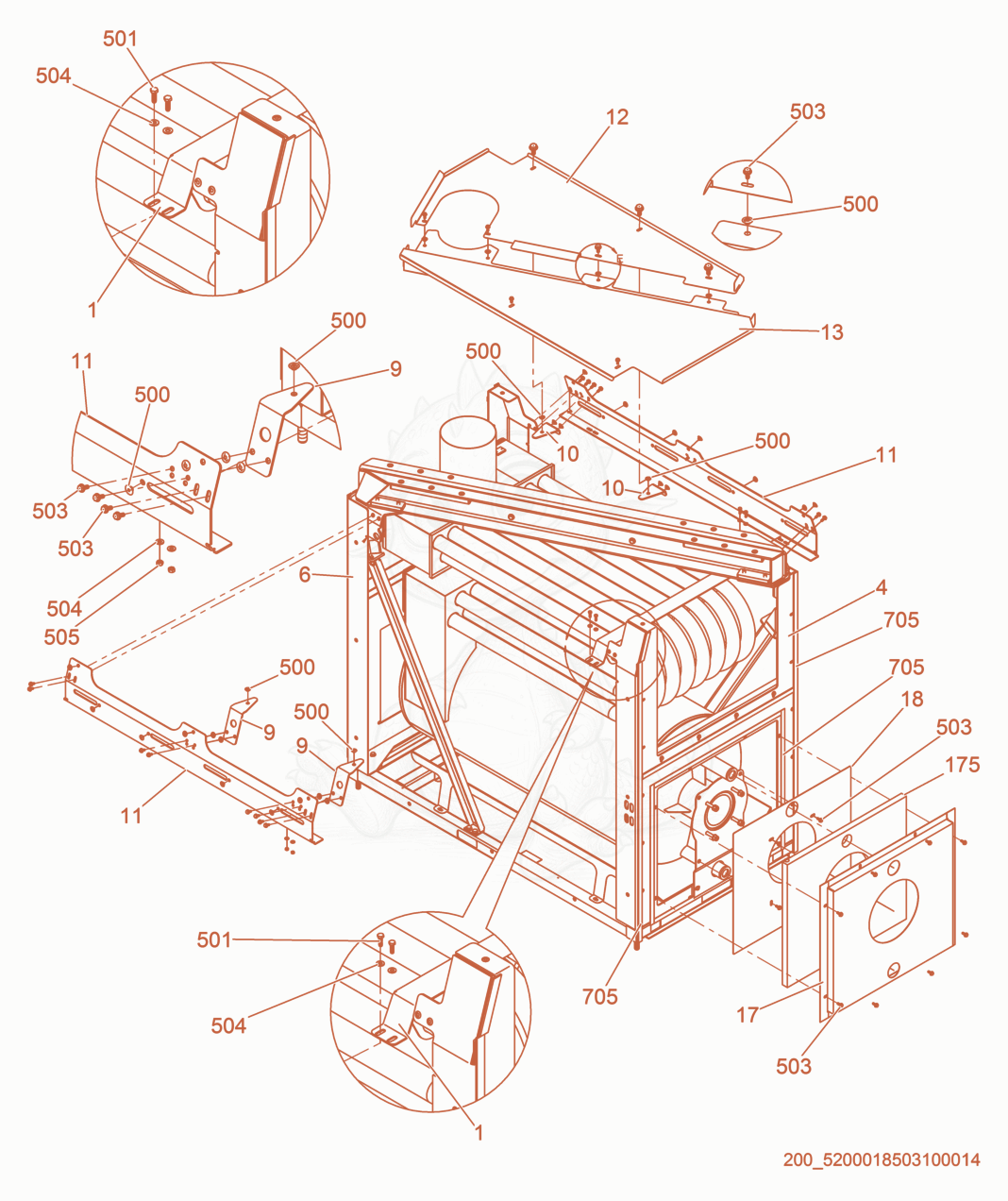

HI260 Heatshield Diagram
- 15200006854Not stockedHeater cpl.×1
- 45200008801Not stockedSupport bracket×1
- 95200014881Not stockedMounting bracket×2
- 105200014880Not stockedMounting bracket×2
- 115200014126Not stockedBrace×2
- 125200014882Not stockedPanel×1
- 135200014883Not stockedPanel×1
- 175200009070Not stockedPanel×1
- 185200009068Not stockedPanel×1
- 1755200009069Not stockedInsulation panel×1
- 5005000173960Not stockedNut×27
- 5015000189215Not stockedHexagonal head cap screw×4
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×28
- 5045000192393Not stockedFlat washer×8
- NUT-LOCK M6 HEX. - 5000010368×4
- 7055100041966Not stockedSeal×1
