HI260 HEATER,OIL WITH TANK

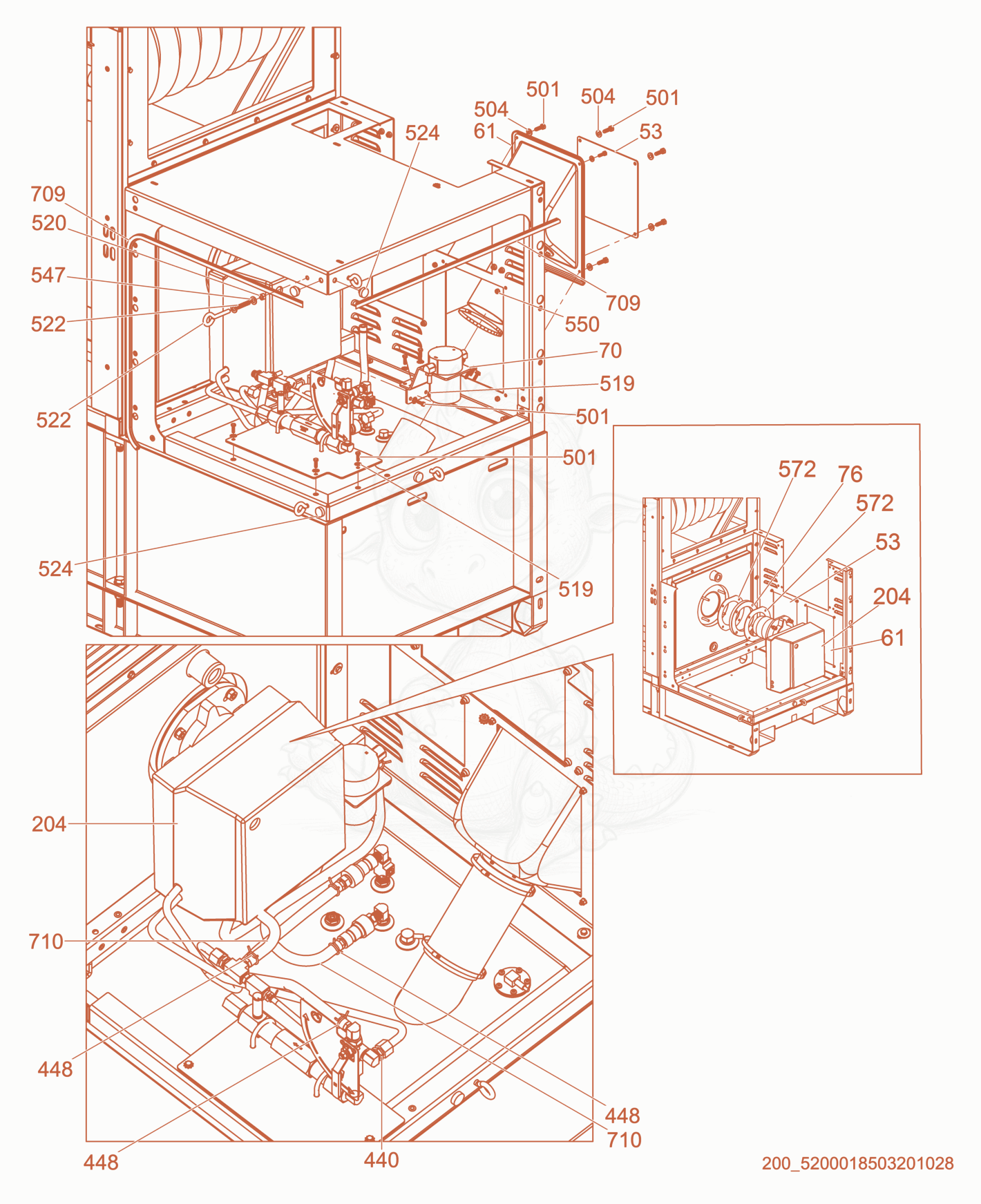

HI260 Burner/Gasket Diagram
- Cover Plate,Rear P-5000112006 - 5000194021×1
- PORT-FUEL FILL - 5000171136×1
- 705000173990Not stockedFilter bracket×1
- 765200019378Not stockedSpacer×1
- 2045200018769Not stockedBurner cpl.×1
- 4055000168010Not stockedQuick coupler×1
- 4065000168012Not stockedQuick coupler×2
- 4095000168595Not stockedHose barb×1
- 4405000173124Not stockedAdapter fitting×1
- 4485100025415Not stockedCable cpl., L2 to TB×6
- 5015000189215Not stockedHexagonal head cap screw×15
- 5045000192393Not stockedFlat washer×8
- 5195000189214Not stockedWasher×7
- 5205000167778Not stockedNut×4
- 5225000167907Not stockedEye bolt×4
- 5245000170416Not stockedPlug×2
- 5475000167730Not stockedFlat washer×8
- 5505000177095Not stockedHexagon nut×4
- 5725200021929Not stockedGasket×2
- 7095000168354Not stockedTrim×1
- 7105000172060Not stockedhose cpl.×3
