HI260 HEATER,OIL WITH TANK

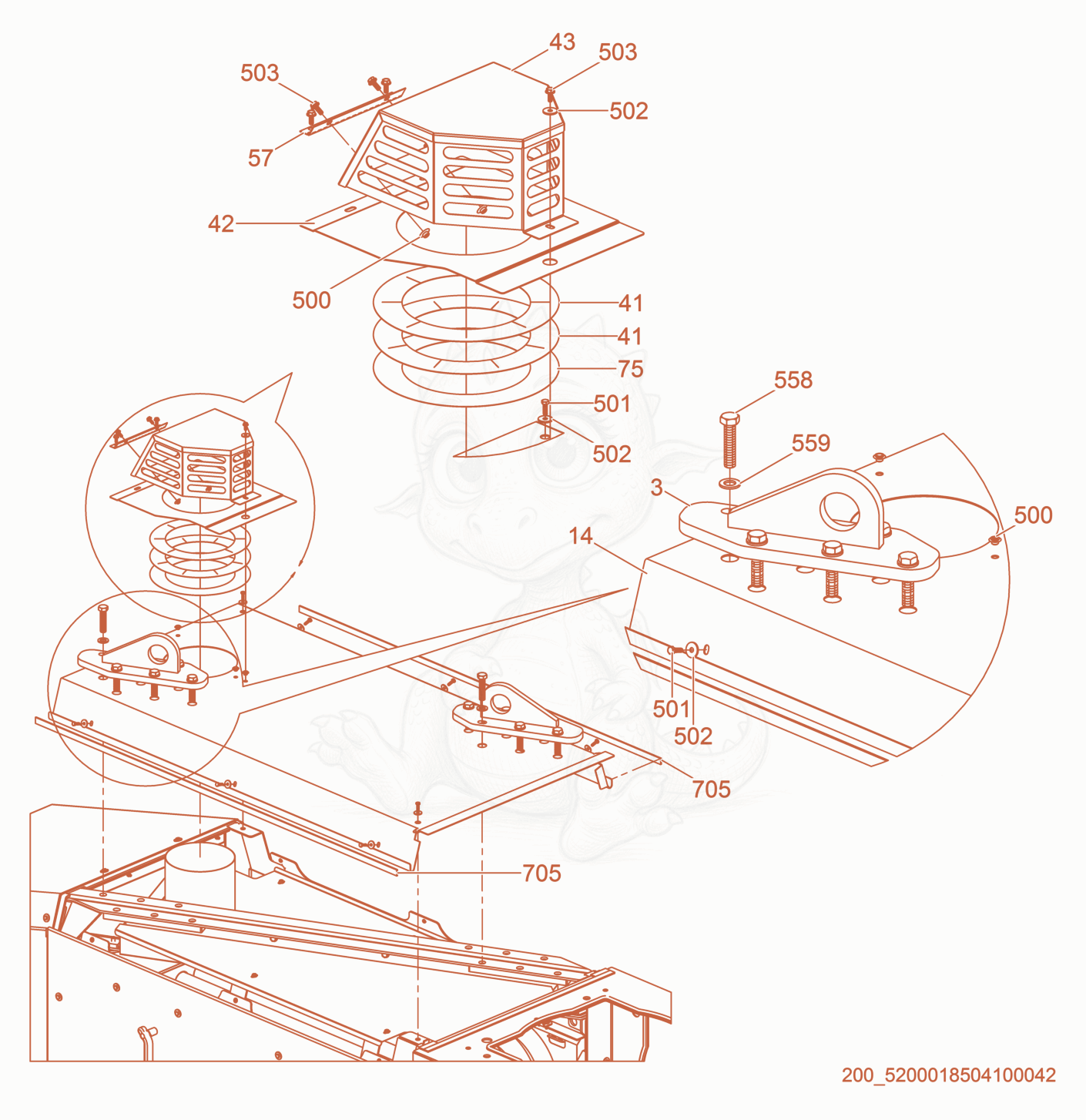

HI260 Exhaust cpl./Lifting Device cpl. Diagram

Exploded parts diagram of the Exhaust cpl./Lifting Device cpl. of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35200009000Not stocked
    Lifting eye bracket×2
  • 145200014992Not stocked
    Top panel×1
  • 415200016673Not stocked
    Lower plate×2
  • 425200016636Not stocked
    Upper plate×1
  • 435200015102Not stocked
    Box×1
  • 575000181869Not stocked
    Hinge×1
  • 755200018774Not stocked
    Insulator×1
  • 5005000173960Not stocked
    Nut×6
  • 5015000189215Not stocked
    Hexagonal head cap screw×10
  • 5025000192389Not stocked
    Flat washer×10
  • 5035000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×6
  • 5585200010097Not stocked
    Screw×12
  • 5595000128369
    $0.52
    WASHER-A17 - 5000128369×12
