HI260 HEATER,OIL WITH TANK

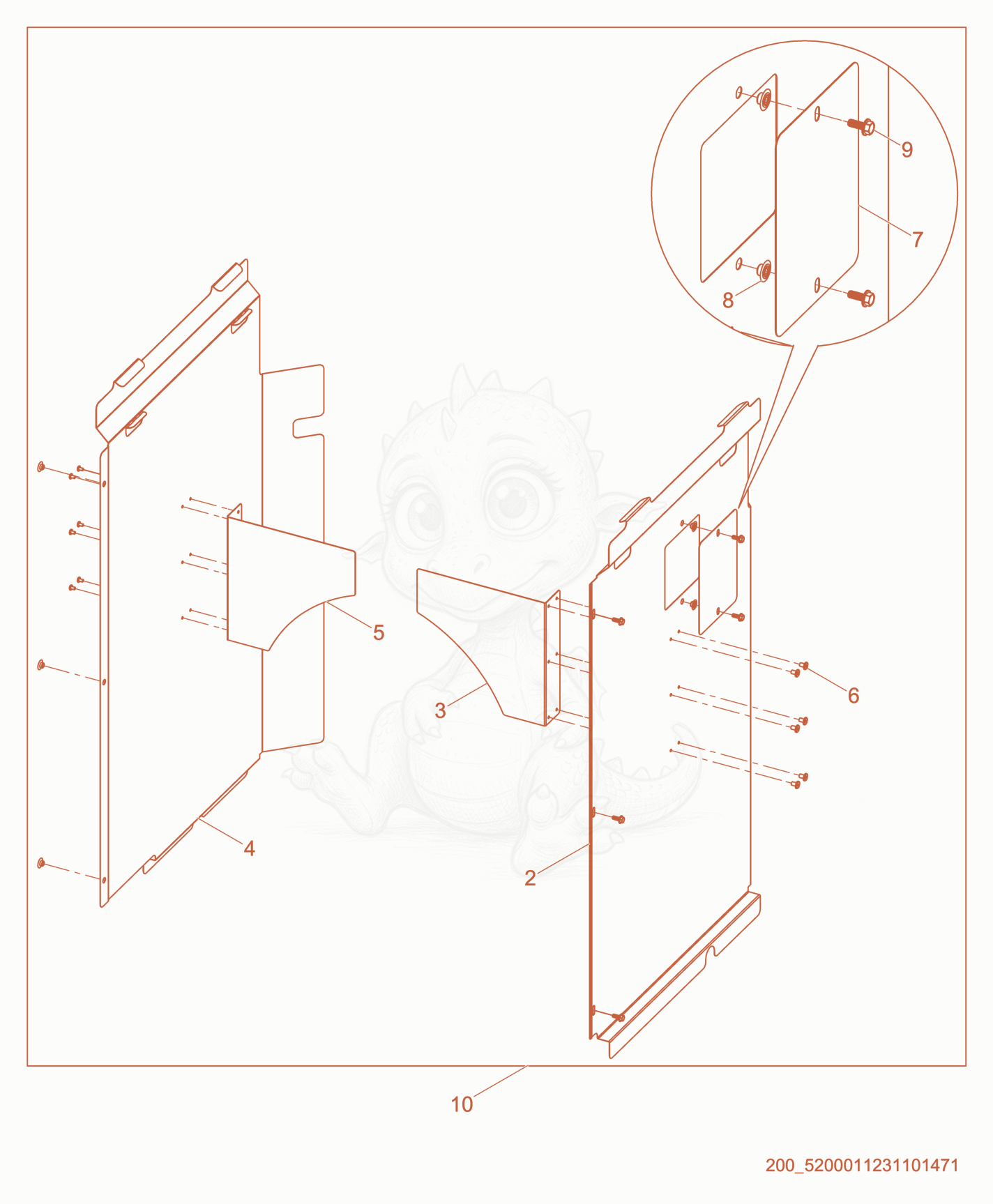

HI260 Heat Shield Kit Diagram

Exploded parts diagram of the Heat Shield Kit of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200015005Not stocked
    Panel-side×1
  • 35100026374Not stocked
    Shield×1
  • 45200015007Not stocked
    Side access panel×1
  • 55100026375Not stocked
    Shield×1
  • 65000167696Not stocked
    Rivet×12
  • 75200015871Not stocked
    Cover×1
  • 85000173960Not stocked
    Nut×5
  • 95000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×5
  • 105100026471Not stocked
    Heat Shield Kit×1
