HI260 HEATER,OIL WITH TANK

HI260 Control Panels/Wiring Diagram

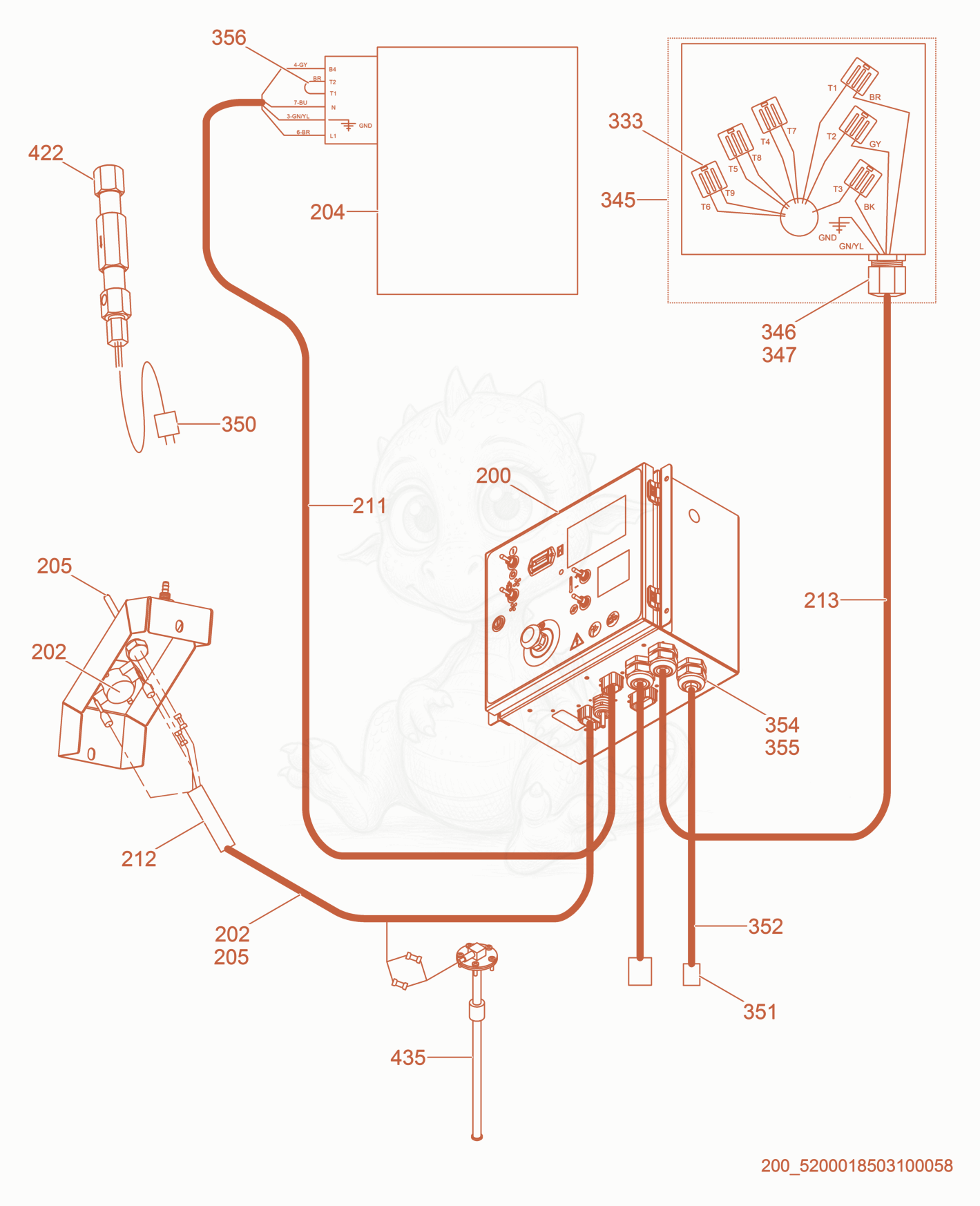

Exploded parts diagram of the Control Panels/Wiring of a Wacker Neuson HI260, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2005200018601Not stocked
    Control panel×1
  • 2025200018610Not stocked
    Sensor×1
  • 2045200018769Not stocked
    Burner cpl.×1
  • 2055200013290Not stocked
    Sensor×1
  • 2115200018604Not stocked
    Cable cpl.×1
  • 2125200018606Not stocked
    Wiring harness×1
  • 2135200018607Not stocked
    Power cable×1
  • 3335000166833Not stocked
    Terminal×6
  • 3455200018611Not stocked
    Motor×1
  • 3465000173256Not stocked
    Strain relief×1
  • 3475000174000Not stocked
    Nut×1
  • 3505000166792Not stocked
    Plug×1
  • 3515000166798Not stocked
    Plug×1
  • 3525000170230Not stocked
    Cord×1
  • 3545000176444
    $2.99
    CONNECTOR-CORD GRIP 1 NPT - 5000176444×3
  • 3555000176445
    $0.56
    NUT-LOCK 1 NPT,STEEL - 5000176445×3
  • 4225200018614Not stocked
    Heater×1
  • 4355200001006
    $182.05
    Sensor-Fuel,350w/connector - 5200001006×1
