RD24e-100c

RD24-100CE canopies and covers Diagram

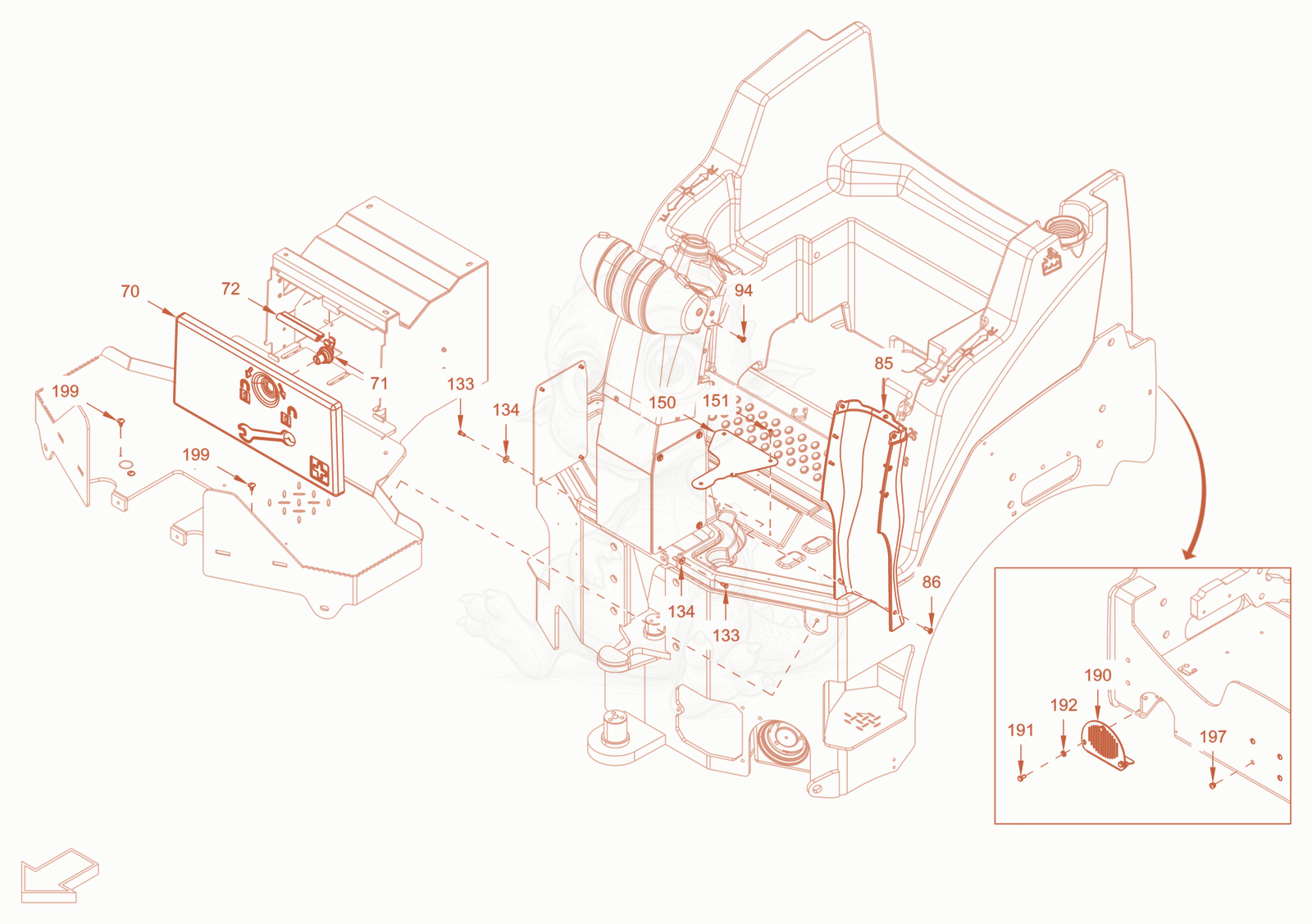

Exploded parts diagram of the canopies and covers of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 705100012033
    $162.68
    Cover - 5100012033×1
  • 715100013591
    $281.16
    Built-in lock - 5100013591×1
  • 725100013647
    $26.62
    Sealing profile - 5100013647×0.8
  • 855100025102Not stocked
    covering part×1
  • 865100086721Not stocked
    fillister head screw×6
  • 945100086721Not stocked
    fillister head screw×7
  • 1335100012592
    $11.56
    Hexagon screw - 5100012592×8
  • 1345100013453
    $1.49
    Washer - 5100013453×8
  • 1505100012880
    $32.79
    Cover plate - 5100012880×1
  • 1515100011634
    $1.57
    Sheet metal screw - 5100011634×2
  • 1905100012659
    $82.28
    Cover - 5100012659×1
  • 1915100012572
    $20.09
    Hexagon screw - 5100012572×3
  • 1925100012965
    $3.01
    Locking washer - 5100012965×3
  • 1975100050647Not stocked
    filler cap×4
  • 1995100011550
    $1.57
    Plug - 5100011550×4
