RD24e-100c

RD24-100CE hydraulic oil tank Diagram

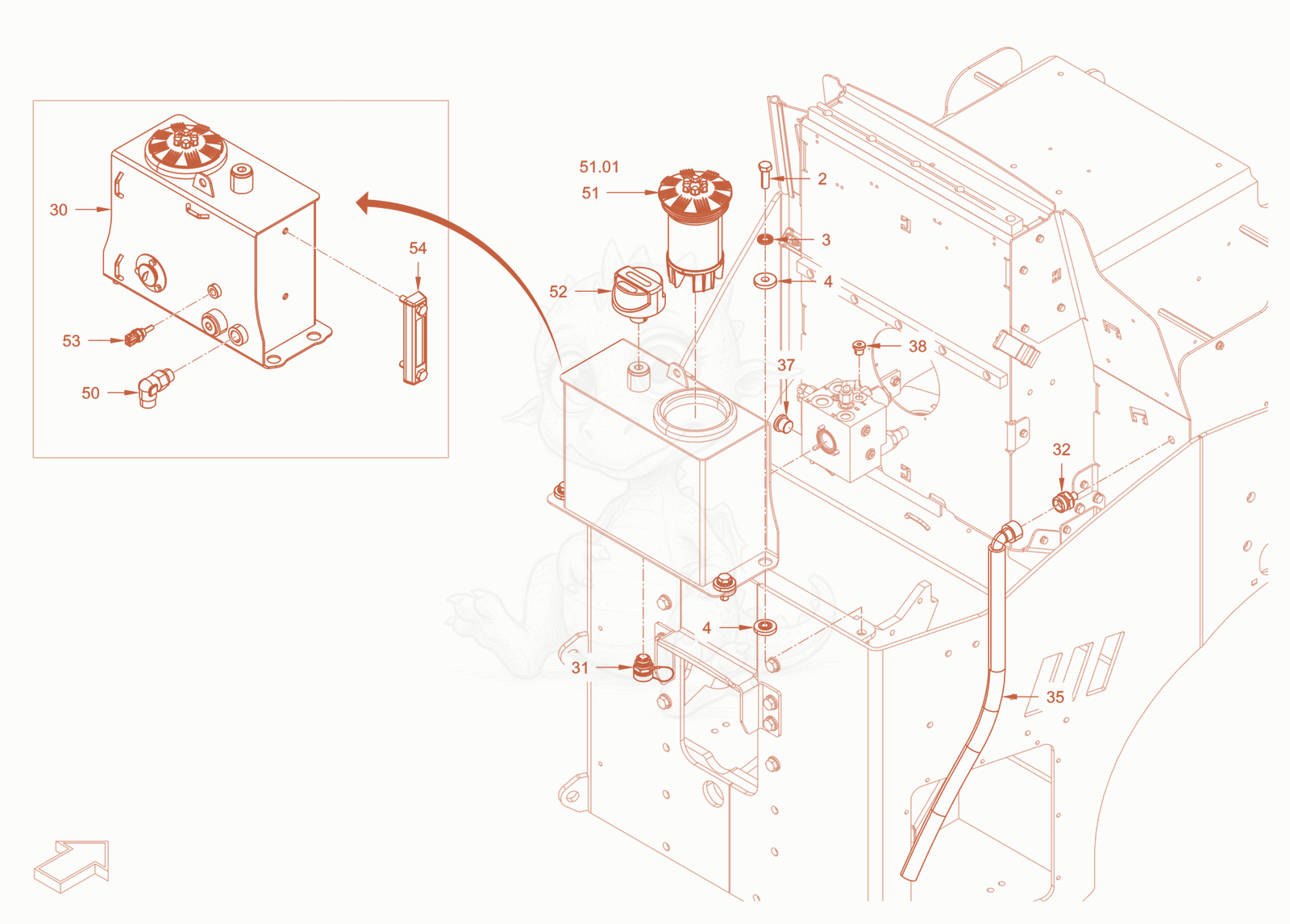

Exploded parts diagram of the hydraulic oil tank of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100012621
    $2.62
    Hexagon screw - 5100012621×4
  • 35100012968
    $1.57
    Locking washer - 5100012968×4
  • 45100073181Not stocked
    rubber bearing×8
  • 305100073202Not stocked
    hydraulic oil tank×1
  • 315100073226Not stocked
    oil service valve×1
  • 325100073080Not stocked
    Connection×1
  • 355100073081Not stocked
    Hose×1
  • 375100011665
    $8.69
    Screw plug - 5100011665×1
  • 385100011608
    $6.37
    Screw plug - 5100011608×1
  • 505100073082Not stocked
    elbow adjustable×1
  • 515100073083Not stocked
    return filter×1
  • 515100073084Not stocked
    filter insert×1
  • 525100063888Not stocked
    vent filter×1
  • 535100023402
    $95.57
    temperature switch - 5100023402×1
  • 545100013435
    $114.84
    Oil level indicator - 5100013435×1
