RD24e-100c

RD24-100CE additive sprinkling Diagram

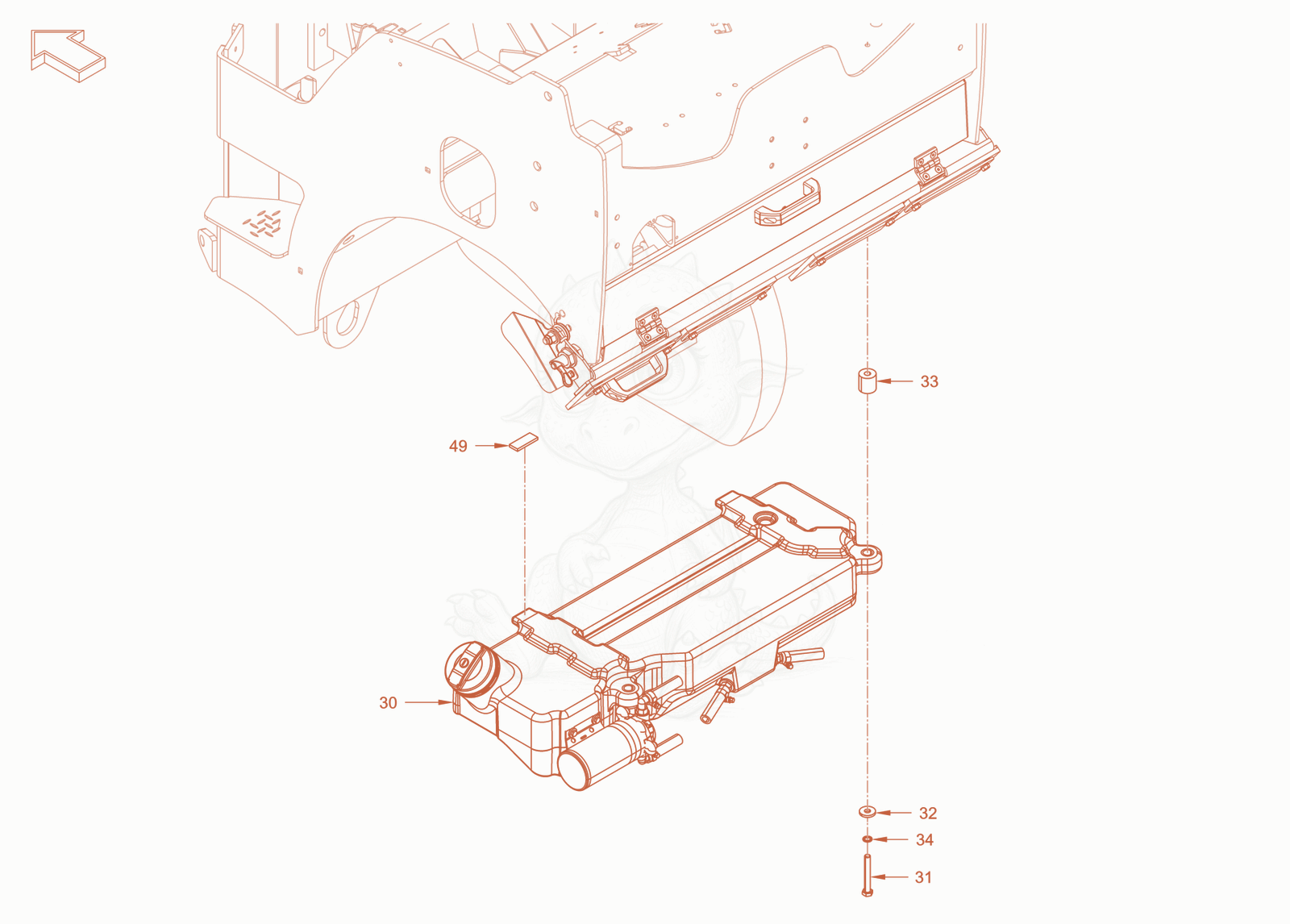

Exploded parts diagram of the additive sprinkling of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100066876Not stocked
    additive tank×1
  • 315100035553Not stocked
    hexagon screw×2
  • 325100013128
    $1.09
    Washer - 5100013128×2
  • 335100011717
    $26.54
    Spacer block - 5100011717×2
  • 345100013440
    $1.57
    Locking washer - 5100013440×2
  • 495100013644
    $5.90
    Rubber profile - 5100013644×0.2
