RD24e-100c

RD24-100CE track indicator Diagram

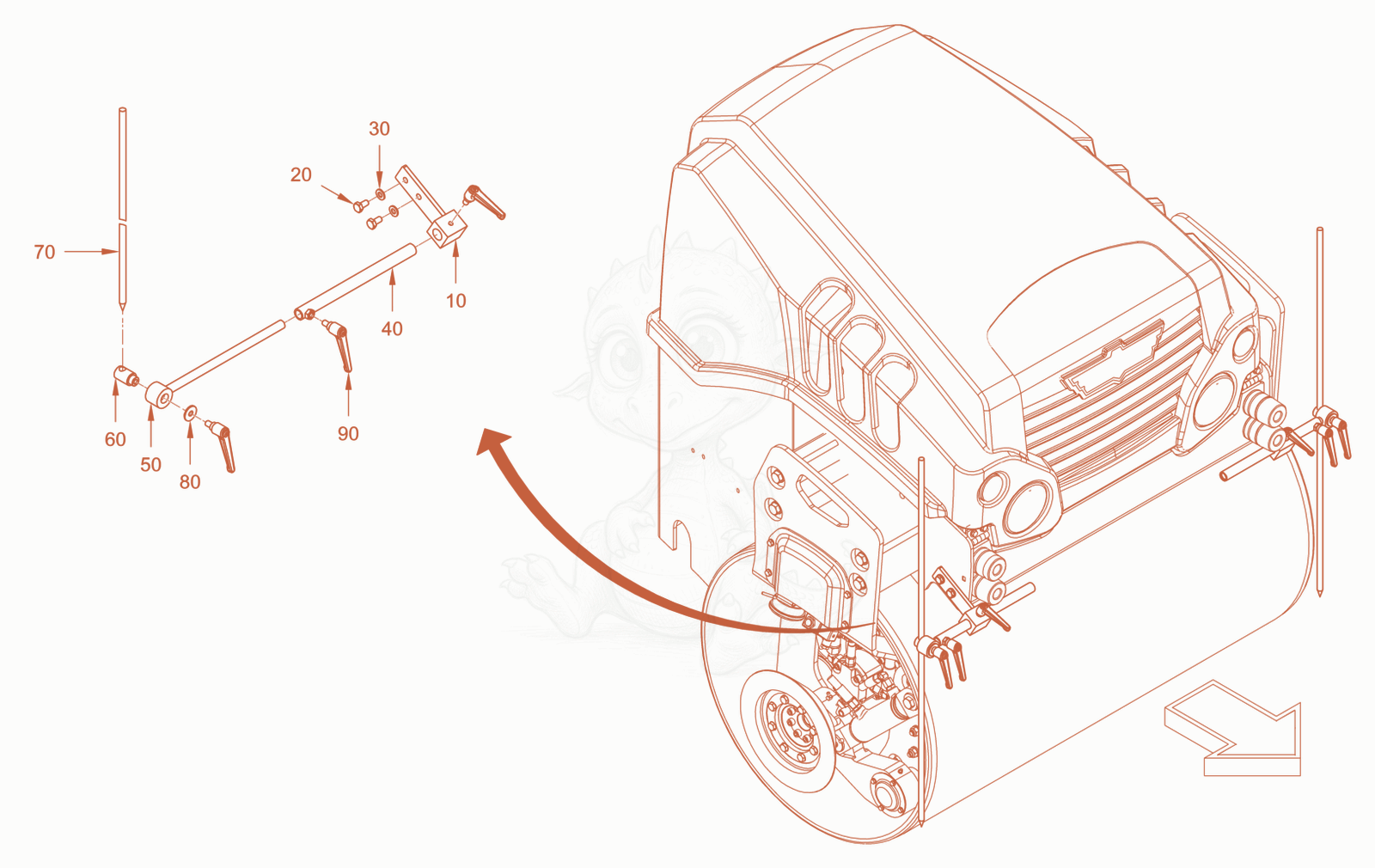

Exploded parts diagram of the track indicator of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100033238Not stocked
    holder×2
  • 205100012520
    $1.57
    Hexagon screw - 5100012520×4
  • 305100012967
    $1.57
    Locking washer - 5100012967×4
  • 405100011789Not stocked
    Pipe×2
  • 505100011788Not stocked
    Bracket×2
  • 605100011790Not stocked
    Bolt×2
  • 705100013638Not stocked
    Indicator×2
  • 705100020851Not stocked
    Indicator×2
  • 805100013509
    $1.57
    Washer - 5100013509×2
  • 905100011783Not stocked
    Hand lever×6
