RD24e-100c

RD24-100CE centre pivot assembly Diagram

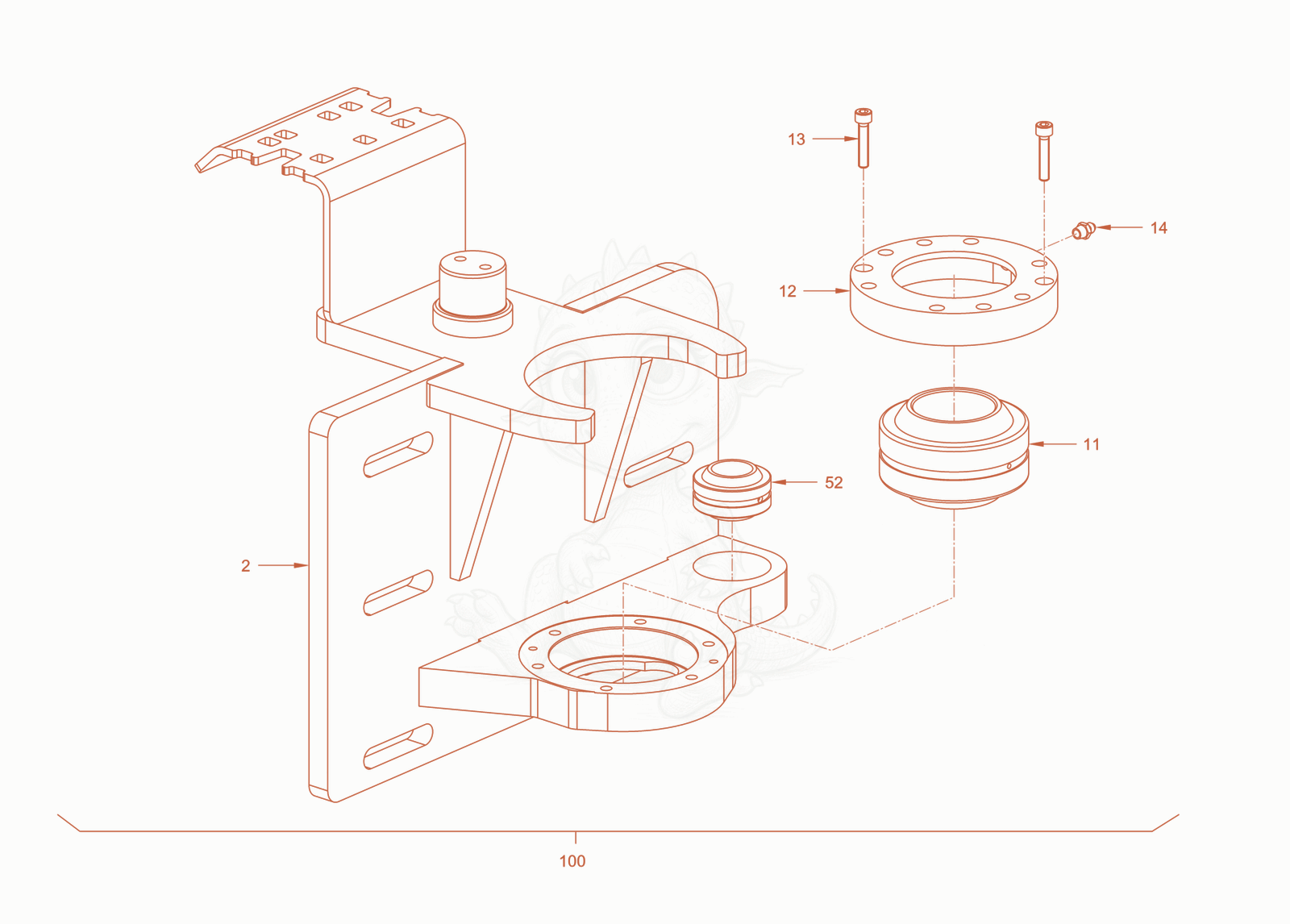

Exploded parts diagram of the centre pivot assembly of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100073184Not stocked
    centre pivot assembly×1
  • 115100013610
    $480.36
    Rod end ball joint - 5100013610×1
  • 125100011779
    $357.94
    Clamping piece - 5100011779×1
  • 135100011481
    $1.49
    Cheese-head screw - 5100011481×2
  • 145100012479
    $1.49
    Greasing nipple - 5100012479×1
  • 525100011777
    $144.89
    Radial rod end bearing - 5100011777×1
  • 1005100073182Not stocked
    joint×1
