RD24e-100c

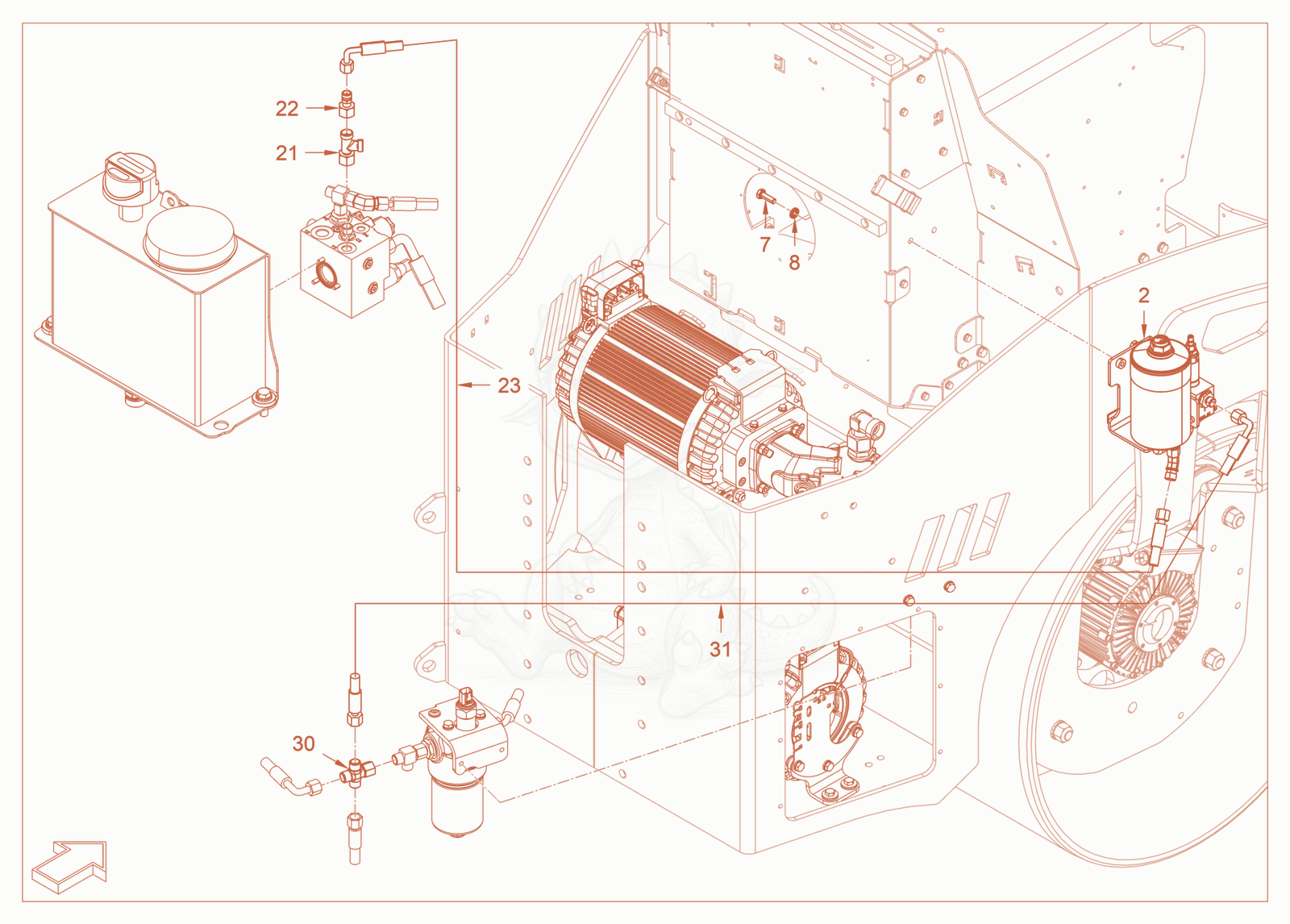

RD24-100CE bypass oil filter Diagram

Exploded parts diagram of the bypass oil filter of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100073086Not stocked
    bypass oil filter×1
  • 75100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 85100012966
    $1.57
    Locking washer - 5100012966×2
  • 215100013613
    $36.61
    Elbow adjustable - 5100013613×1
  • 225100073087Not stocked
    reducing connector×1
  • 235100073088Not stocked
    hose×1
  • 305100073089Not stocked
    equal cross×1
  • 315100073091Not stocked
    hose×1
