RD24e-100c

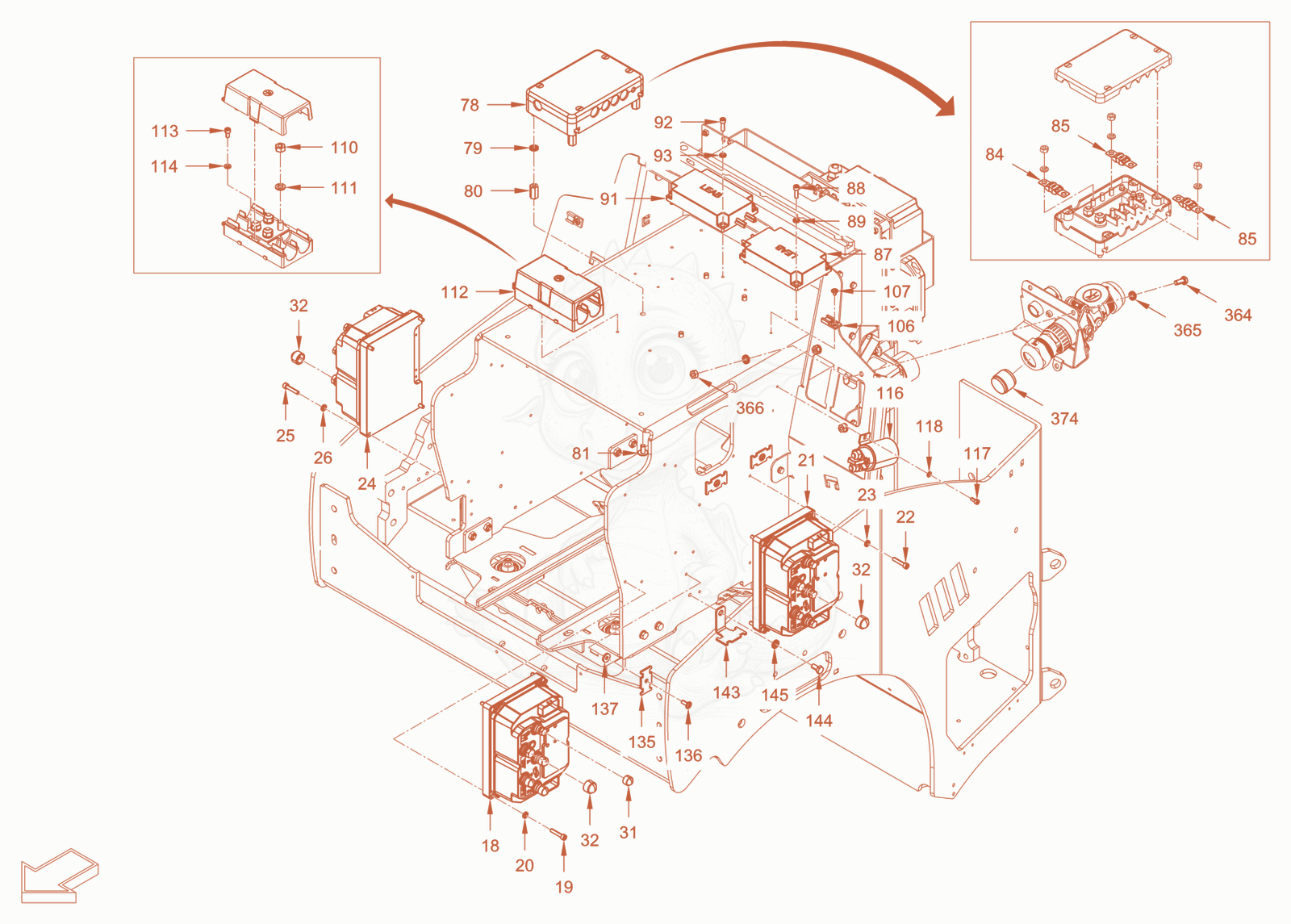

RD24-100CE electrical system Diagram
- 185100073127Not stockedconverter×1
- Cheese-head screw - 5100011481×4
- Locking washer - 5100012965×4
- 215100073140Not stockedconverter×1
- Cheese-head screw - 5100011481×4
- Locking washer - 5100012965×4
- 245100073127Not stockedconverter×1
- Cheese-head screw - 5100011481×4
- Locking washer - 5100012965×4
- Protecting cap - 5100013572×4
- Cap - 5100011542×3
- fuse socket - 5100023097×1
- Locking washer - 5100012966×4
- 805100073142Not stockedbolt×4
- 815100086733Not stockedfillister head screw×4
- 845100073144Not stockedfuse×1
- 855100073146Not stockedfuse×2
- 875100073148Not stockedvoltage transformer×1
- Cheese-head screw - 5100012723×4
- Locking washer - 5100012965×4
- 915100073150Not stockedvoltage transformer×1
- Cheese-head screw - 5100012723×4
- Locking washer - 5100012965×4
- clip - 5100035316×1
- 1075100086734Not stockedfillister head screw×1
- hexagonal nut - 5100023124×4
- Serrated lock washer - 5100011918×4
- 1125100073151Not stockedwire connector×1
- cheese-head screw - 5100034840×2
- Washer - 5100012937×2
- 1165100073152Not stockedrelay×1
- Cheese-head screw - 5100013399×2
- Washer - 5100012936×2
- 1355100073154Not stockedholder×5
- 1365100086723Not stockedfillister head screw×5
- Washer - 5100011636×5
- 1435100073096Not stockedmounting control panelsrear loader×1
- Hexagon screw - 5100012515×1
- Locking washer - 5100012966×1
- Hexagon screw - 5100012517×3
- Locking washer - 5100012966×6
- Hexagon nut - 5100012546×3
- 3745100073160Not stockedfiller cap×1
