RD24e-100c

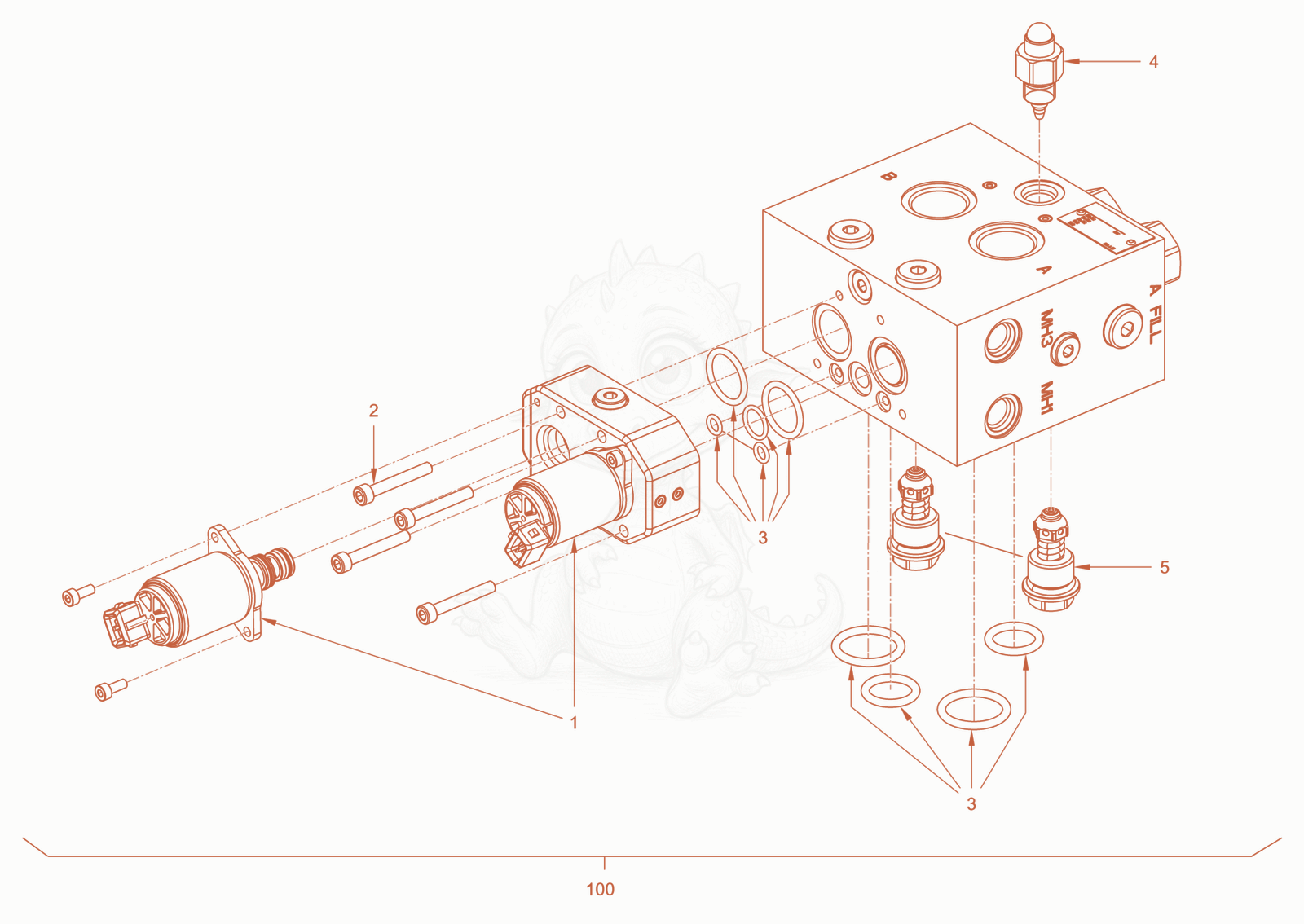

RD24-100CE valve block Diagram

Exploded parts diagram of the valve block of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100076185Not stocked
    solenoid valve×2
  • 25100076187Not stocked
    screw×4
  • 35100076188Not stocked
    set of seals×1
  • 45100076189Not stocked
    nozzle×1
  • 55100076190Not stocked
    pressure-relief valve×2
  • 1005100076192Not stocked
    valve block×1
