TH522

TH522STAGEV venting Diagram

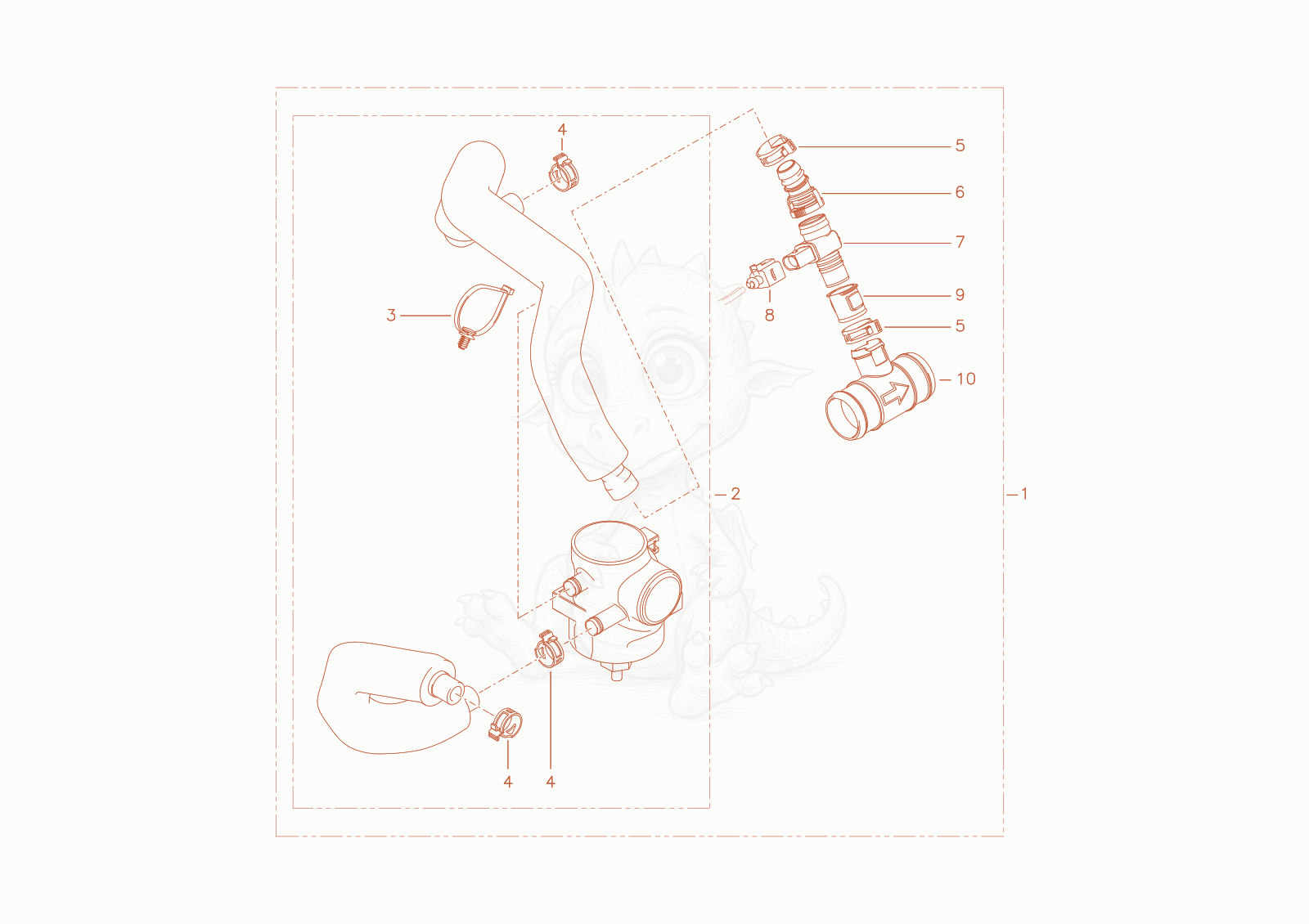

Exploded parts diagram of the venting of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000457795Not stocked
    heating×1
  • 21000457796Not stocked
    Seperator×1
  • 31000322173Not stocked
    CABLE CLIP×1
  • 41000433923Not stocked
    hose clamp×3
  • 51000389153Not stocked
    hose clamp×2
  • 61000339283Not stocked
    double nipple×1
  • 71000312353
    $132.26
    element - 1000312353×1
  • 81000457807Not stocked
    plug connection×1
  • 91000433921
    $11.42
    bushing - 1000433921×1
  • 101000433920
    $27.59
    pipe - 1000433920×1
