TH522

TH522STAGEV cooler connection Diagram

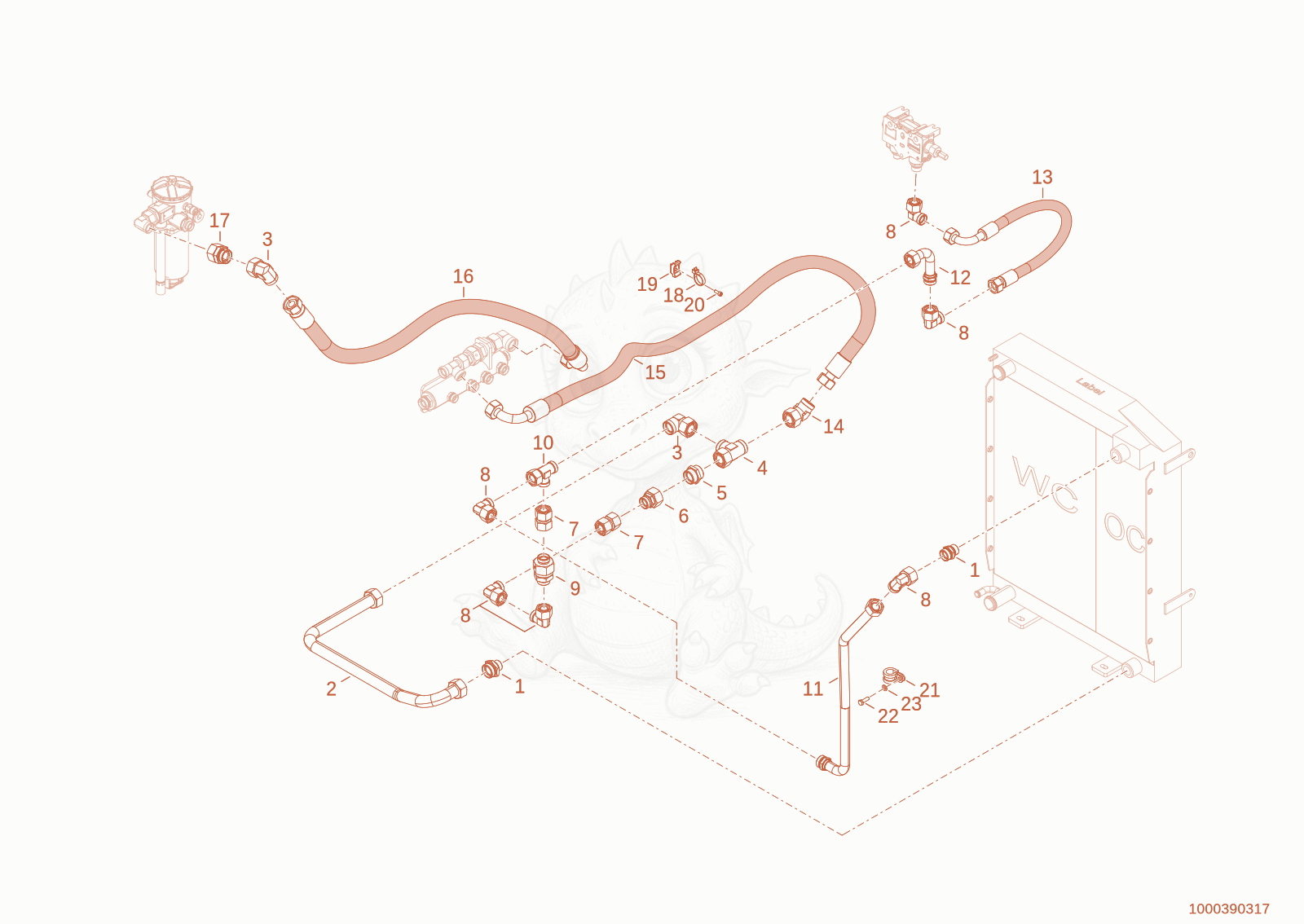

Exploded parts diagram of the cooler connection of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×2
  • 21000391498Not stocked
    pipe line×1
  • 31000085091
    $31.25
    EW28LOMDA3C - 1000085091×2
  • 41000085110
    $43.94
    EL28LOMDA3C - 1000085110×1
  • 51000085083
    $28.18
    G28LOMDA3CX - 1000085083×1
  • 61000103445
    $27.29
    RED28/22LOMDA3C - 1000103445×1
  • 71000101005
    $30.12
    GZ22L - 1000101005×2
  • 81000020261
    $17.85
    EW22LOMD - 1000020261×6
  • 91000205590
    $152.01
    NON RETURN VALVE - 1000205590×1
  • 101000085045
    $31.31
    EL22LOMDA3C - 1000085045×1
  • 111000380679Not stocked
    pipe line×1
  • 121000303922
    $67.49
    connection piece - 1000303922×1
  • 131000019600Not stocked
    Hose×1
  • 141000160943
    $64.28
    EV28LOMDA3C screw joint - 1000160943×1
  • 151000390905Not stocked
    Hose×1
  • 161000218106
    $138.36
    SLHYDR 1SN 25 PN28 0 PN28 90 L1220 - 1000218106×1
  • 171000359666Not stocked
    screw connection×1
  • 181000193759
    $0.36
    cable strap - 1000193759×1
  • 191000282739
    $2.12
    sockets - 1000282739×1
  • 201000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×1
  • 211000223494
    $3.26
    Clamp - 1000223494×1
  • 221000015343Not stocked
    hex screw×1
  • 231000015431Not stocked
    washer×1
