TH522

TH522STAGEV parking brake Diagram

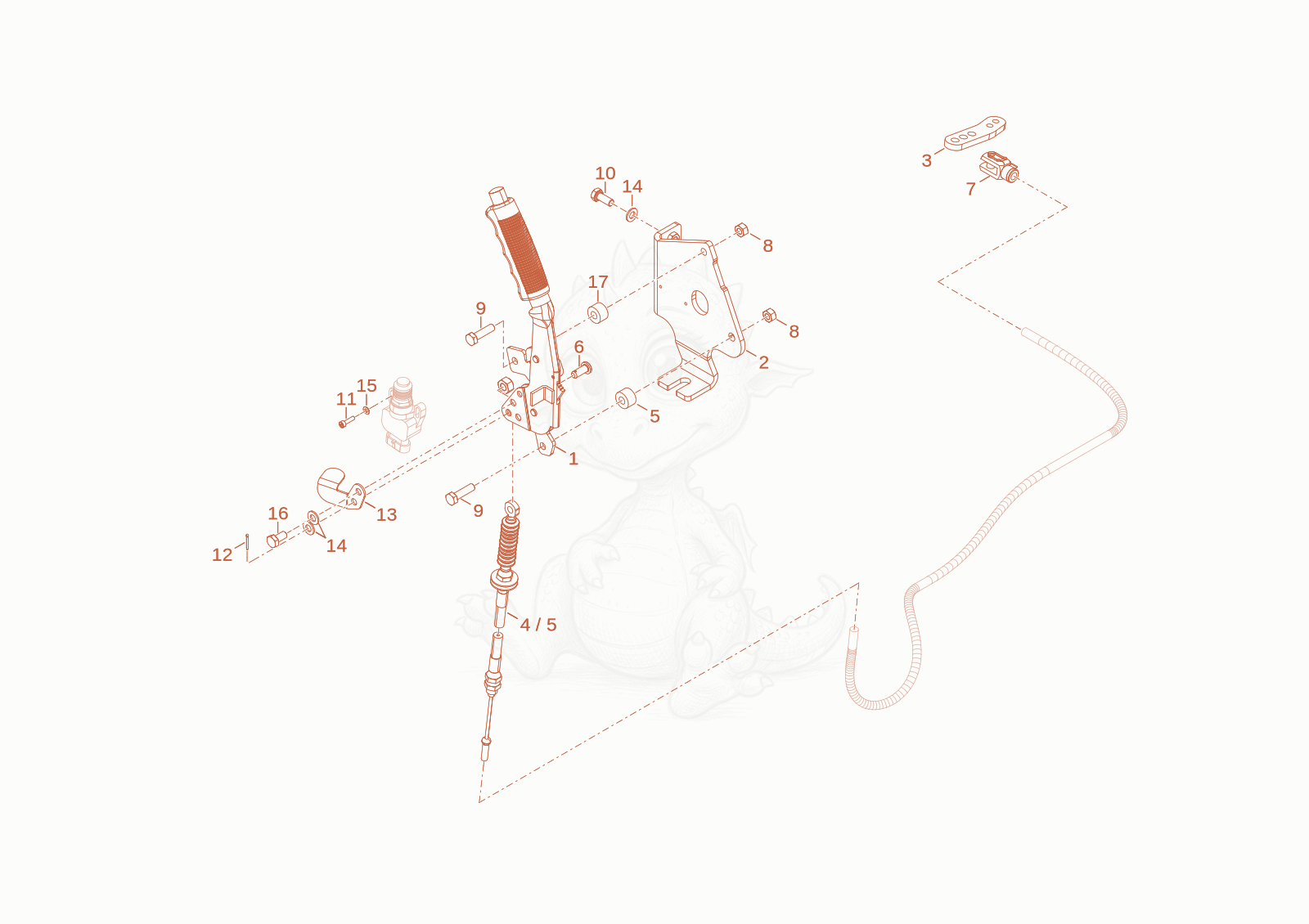

Exploded parts diagram of the parking brake of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000247437
    $124.59
    brake lever - 1000247437×1
  • 21000376531
    $121.97
    Bracket - 1000376531×1
  • 31000277784
    $31.30
    brake lever - 1000277784×1
  • 41000337830Not stocked
    bowden cable×1
  • 51000463353Not stocked
    bowden cable×1
  • 61000096028
    $3.62
    PIN - 1000096028×1
  • 71000001704
    $17.82
    fork - 1000001704×1
  • 81000013022Not stocked
    hexagon nut×3
  • 91000047828Not stocked
    hex screw×2
  • 101000013008Not stocked
    hex screw×2
  • 111000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 121000085657
    $1.74
    COTTERPIN - 1000085657×1
  • 131000376520Not stocked
    plate×1
  • 141000015431Not stocked
    washer×4
  • 151000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • 161000019136Not stocked
    hex screw×1
  • 171000251146
    $5.31
    Bushing - 1000251146×2
