TH522

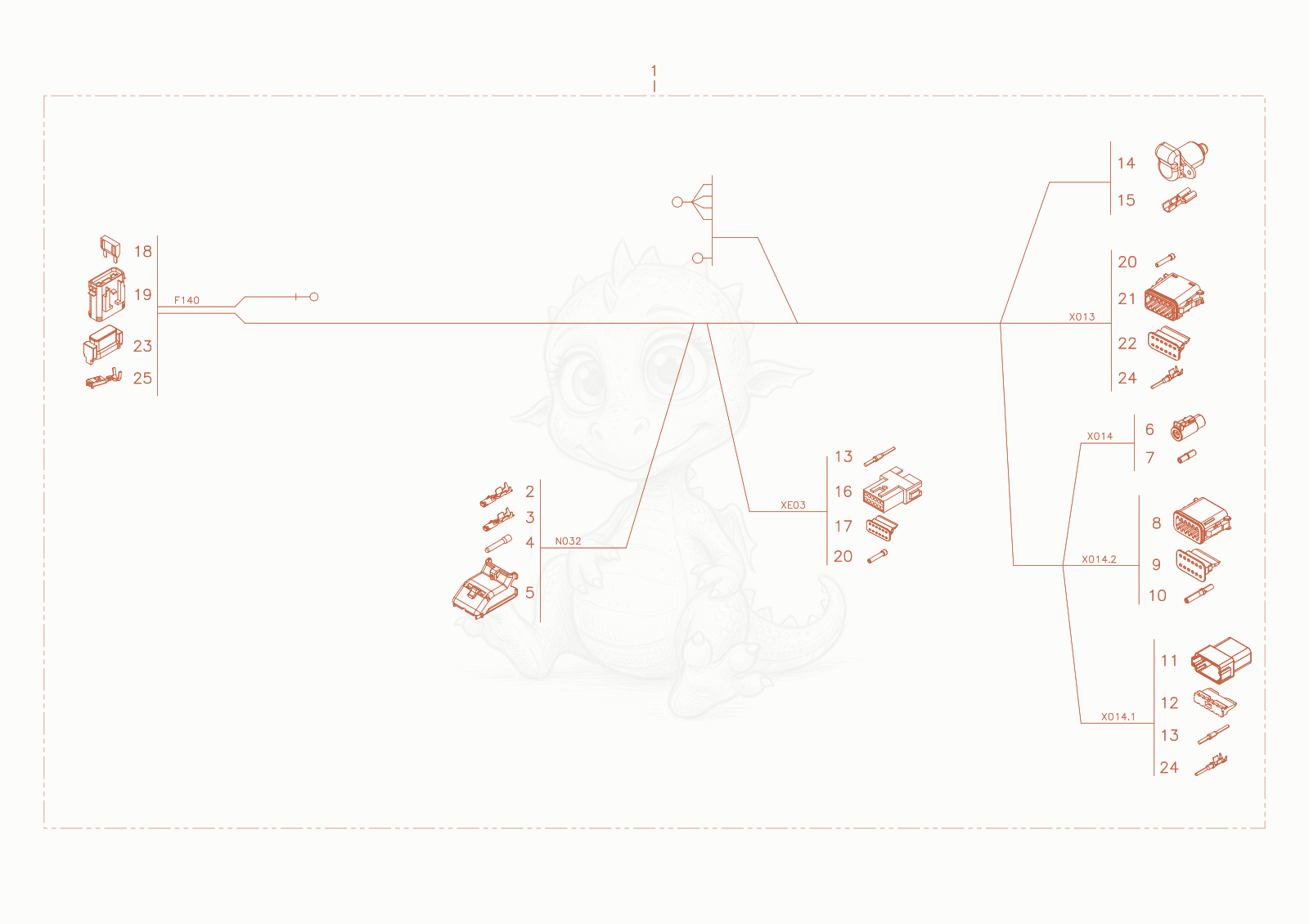

TH522STAGEV main harness Diagram

Exploded parts diagram of the main harness of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000366230Not stocked
    wiring harness×1
  • 21000306992
    $0.75
    bushing - 1000306992×27
  • 31000306994
    $2.34
    bushing - 1000306994×8
  • 41000306978Not stocked
    blind plug×13
  • 51000340963Not stocked
    cover cap×1
  • 61000381173Not stocked
    pin housing×1
  • 71000229913
    $33.46
    ROUND SOCKET SLEEVE - 1000229913×1
  • 81000381174Not stocked
    bushing housing×2
  • 91000229769
    $5.18
    LOCKING - 1000229769×2
  • 101000229894
    $2.77
    ROUND SOCKET SLEEVE - 1000229894×23
  • 111000229766
    $38.54
    HOUSING - 1000229766×1
  • 121000229765
    $1.65
    locking - 1000229765×1
  • 131000085028Not stocked
    pin contact×21
  • 141000229809
    $23.63
    socket - 1000229809×1
  • 151000229866
    $2.40
    PLUG SLEEVE - 1000229866×2
  • 161000388932Not stocked
    bushing housing×1
  • 171000085012
    $13.79
    LOCKING PIN - 1000085012×1
  • 181000280119
    $9.96
    FUSE - 1000280119×1
  • 191000385305Not stocked
    fuse holder×1
  • 201000385806
    $1.49
    Seal - 1000385806×3
  • 211000394045Not stocked
    bushing housing×1
  • 221000385576
    $3.10
    locking - 1000385576×1
  • 231000385673
    $7.68
    cover - 1000385673×1
  • 241000365063Not stocked
    round socket×11
  • 251000386505
    $7.91
    contactpin - 1000386505×2
