TH522

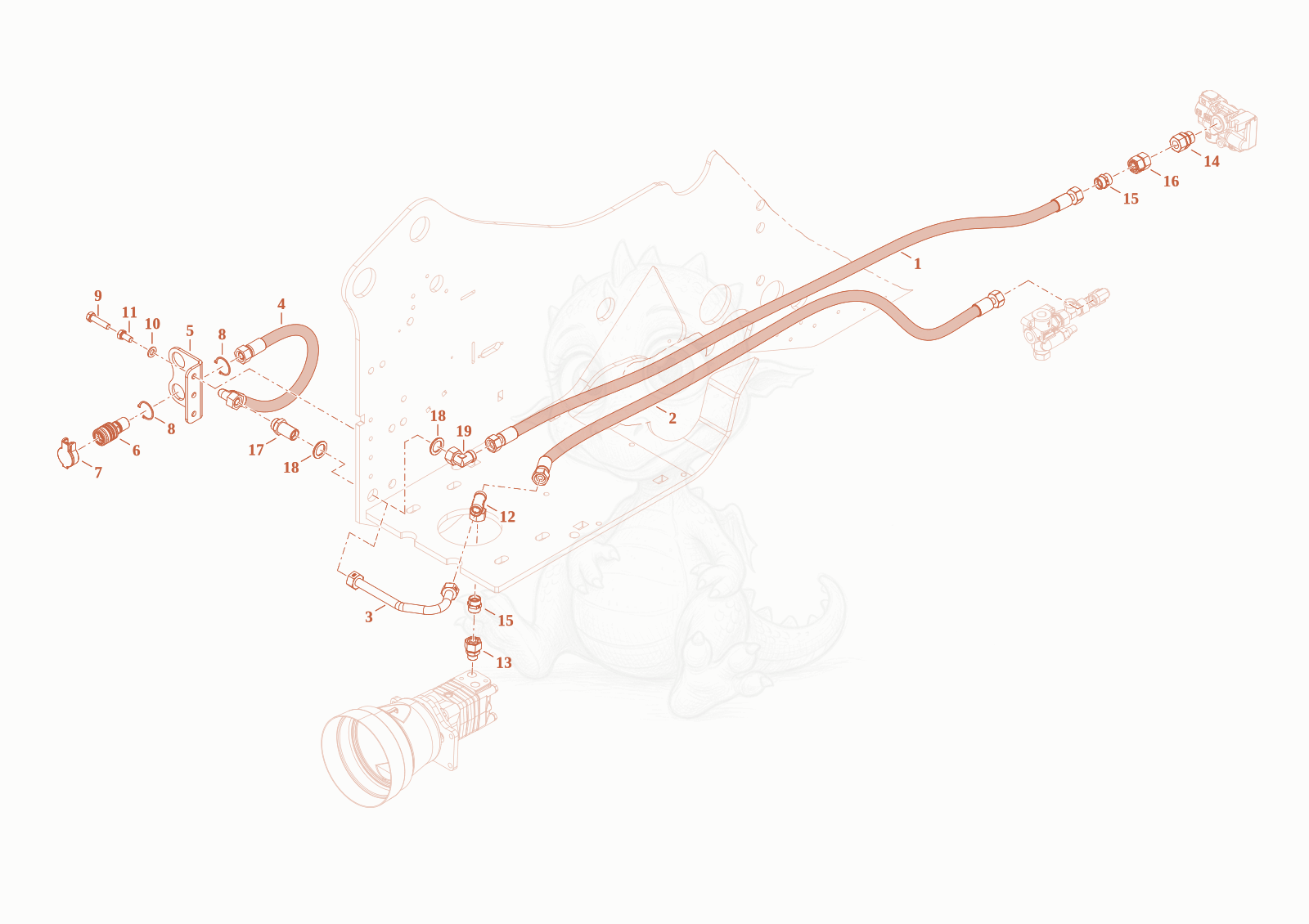

TH522STAGEV reflux line Diagram

Exploded parts diagram of the reflux line of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000381995Not stocked
    Hose×1
  • 21000381999Not stocked
    Hose×1
  • 31000375153Not stocked
    hydraulic pipe×1
  • 41000217551
    $50.40
    SLHYDR 1SN 16 PN18 0 PN18 90 L570,0 - 1000217551×1
  • 51000289061
    $75.70
    Bracket - 1000289061×1
  • 61000243942
    $41.32
    plug coupling - 1000243942×1
  • 71000033397
    $5.02
    COVER - 1000033397×1
  • 81000095360
    $1.88
    lock ring - 1000095360×2
  • 91000047391Not stocked
    hex screw×3
  • 101000049219Not stocked
    washer×3
  • 111000047687Not stocked
    hex screw×2
  • 121000085077
    $20.59
    ET18LOMDA3C - 1000085077×1
  • 131000101306
    $10.14
    EGE 18PLR ED R1/2" A3C - 1000101306×1
  • 141000015565Not stocked
    screw joint×1
  • 151000085050
    $4.37
    G18LA3CX - 1000085050×2
  • 161000018398
    $21.62
    GZ18LA3C - 1000018398×1
  • 171000015563Not stocked
    screw joint×1
  • 181000252875
    $5.96
    U-WASHER - 1000252875×2
  • 191000015513Not stocked
    screw joint×1
