TH522

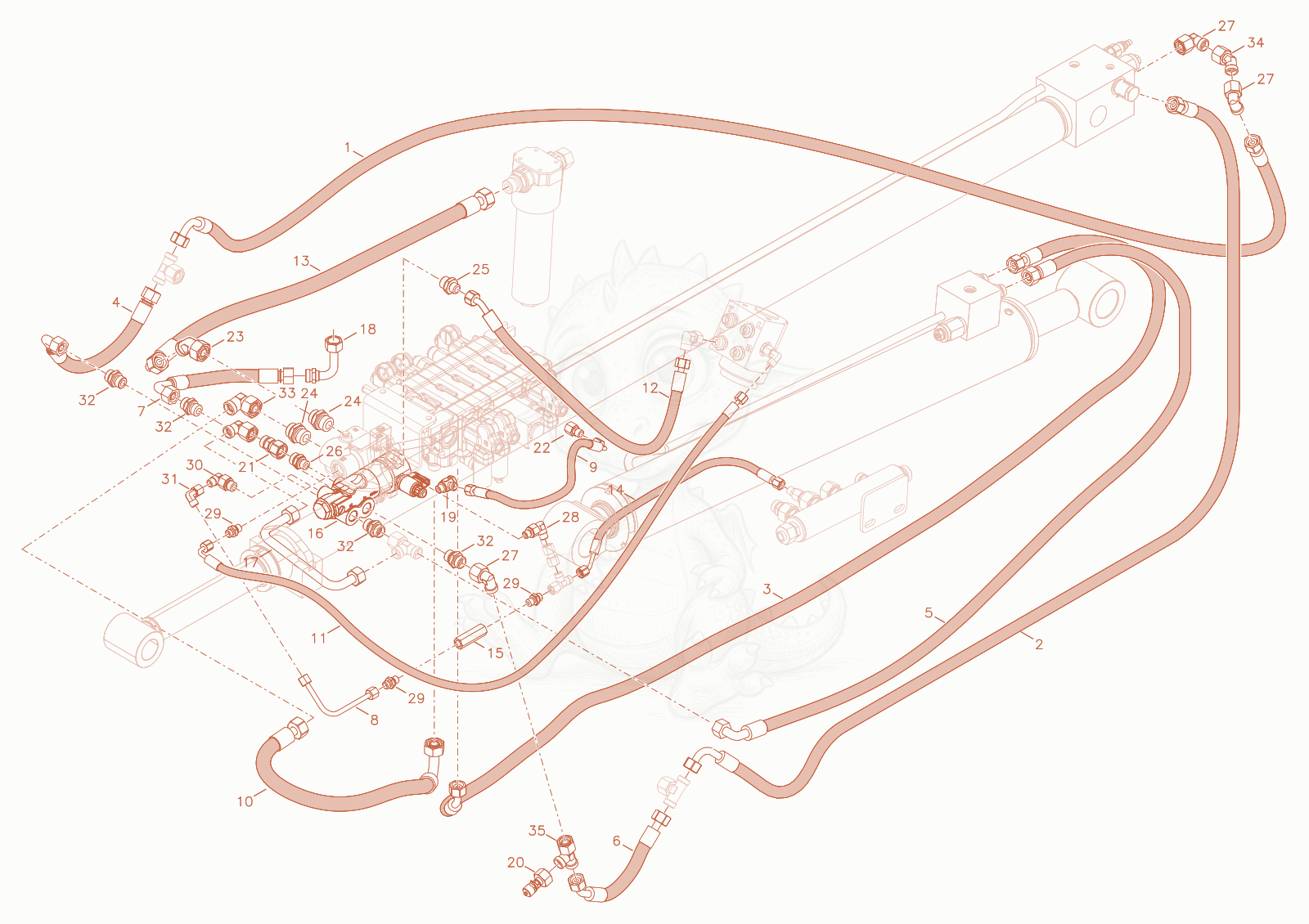

TH522STAGEV working hydraulic Diagram

Exploded parts diagram of the working hydraulic of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000218513
    $107.58
    Slhydr2Scd12Pn150Pn1590L2550 1000218513×1
  • 21000381847Not stocked
    Hose×1
  • 31000381706Not stocked
    Hose×1
  • 41000297892
    $34.12
    SLHYDR 2SC 12 PN15 90 PN15 0 L350,0 - 1000297892×1
  • 51000369984Not stocked
    Hose×1
  • 61000323265Not stocked
    Hose×1
  • 71000218292
    $33.51
    SLHYDR 2SN 12 PN15 0 PN15 90 L300,0 - 1000218292×1
  • 81000377149Not stocked
    pipe line×1
  • 91000221539
    $14.62
    SLHYDR 1SN 6,0PN8 0 PN8 90 L500,0 - 1000221539×1
  • 101000369985Not stocked
    Hose×1
  • 111000369988Not stocked
    Hose×1
  • 121000369987Not stocked
    Hose×1
  • 131000297977
    $57.42
    SLHYDR 2SN 16 PN18 0 PN18 90 L610,0 - 1000297977×1
  • 141000188116
    $69.28
    SLHYDR 2SC 6,0PN8 0 PN8 45 L900,0 0 - 1000188116×1
  • 151000327156
    $161.33
    Valve - 1000327156×1
  • 161000366235
    $808.95
    Valve - 1000366235×1
  • 171000375150Not stocked
    hydraulic pipe×1
  • 181000036911Not stocked
    connection piece×1
  • 191000317157
    $22.08
    WH08LRKDSOMD - 1000317157×1
  • 201000152125
    $64.61
    minimess point - 1000152125×1
  • 211000226445
    $27.49
    KOVO 15L/15L - 1000226445×1
  • 221000085094
    $11.33
    RED10/08LOMDA3C - 1000085094×1
  • 231000298483
    $45.55
    EV18LOMDA3C - 1000298483×1
  • 241000015565Not stocked
    screw joint×2
  • 251000015493Not stocked
    screw joint×1
  • 261000100718
    $9.88
    GE15-LR3/8" E A3C - 1000100718×1
  • 271000015512Not stocked
    screw joint×4
  • 281000028677Not stocked
    screw joint×1
  • 291000015488Not stocked
    screw joint×3
  • 301000028428Not stocked
    screw joint×1
  • 311000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 321000015494Not stocked
    screw joint×4
  • 331000015513Not stocked
    screw joint×1
  • 341000180503
    $49.14
    EV15LOMDA3C - 1000180503×1
  • 351000015539Not stocked
    screw joint×1
