TH522

TH522STAGEV montage parts compressor Diagram

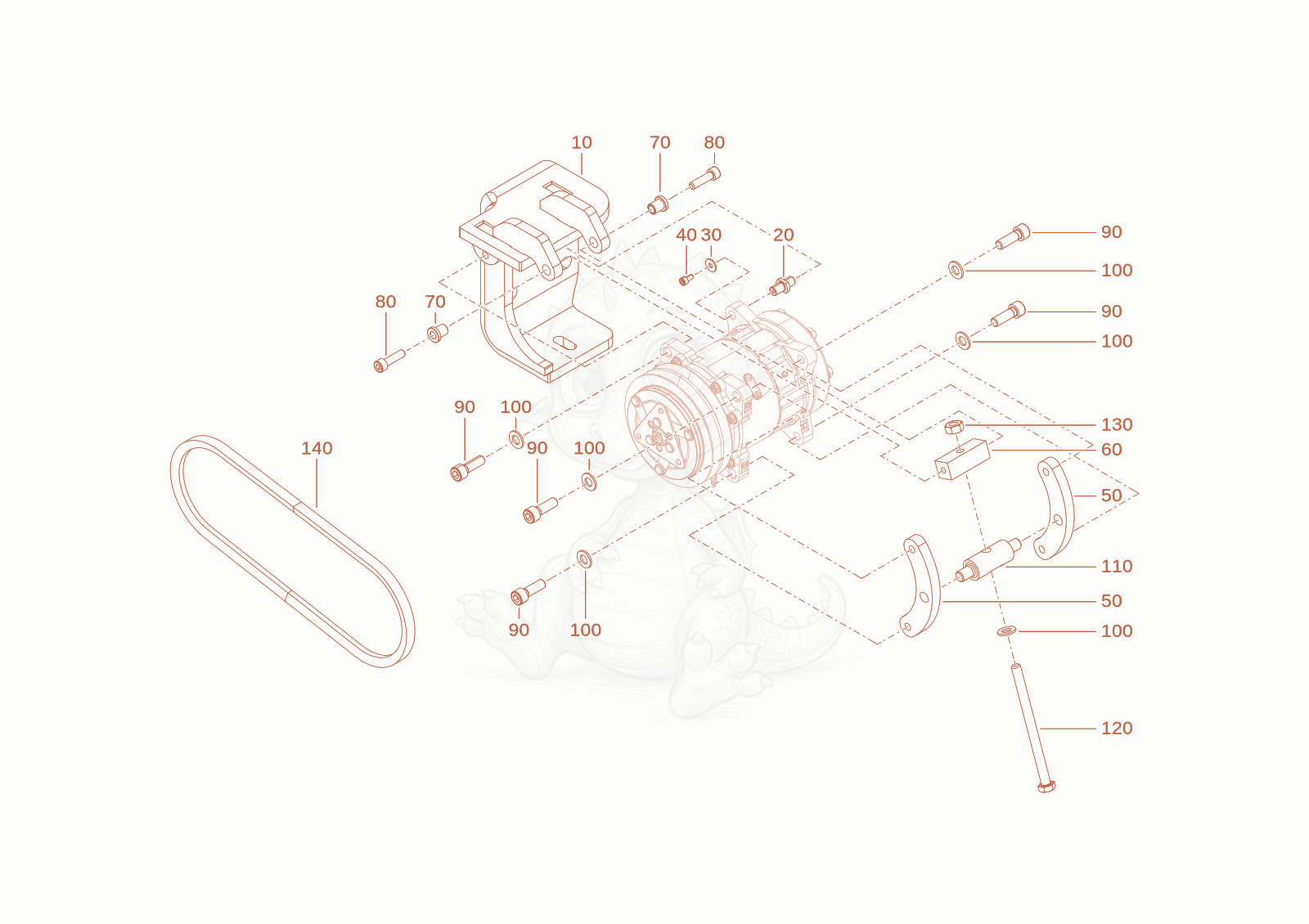

Exploded parts diagram of the montage parts compressor of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000456299Not stocked
    bracket compressor×1
  • 201000446464
    $26.83
    Bolt - 1000446464×1
  • 301000095342
    $1.22
    washer X-1000092302 - 1000095342×1
  • 401000082310
    $0.71
    cheese head screw - 1000082310×1
  • 501000446459Not stocked
    belt tensioner×2
  • 601000446474Not stocked
    articulation piece×1
  • 701000446693Not stocked
    sleeve×2
  • 801000013014Not stocked
    cheese head screw×2
  • 901000015376Not stocked
    cheese head screw×5
  • 1001000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 1101000449117Not stocked
    articulation piece×1
  • 1201000459765Not stocked
    hex screw×1
  • 1301000015407Not stocked
    hexagon nut×1
  • 1401000455415Not stocked
    v-belt×1
