TH522

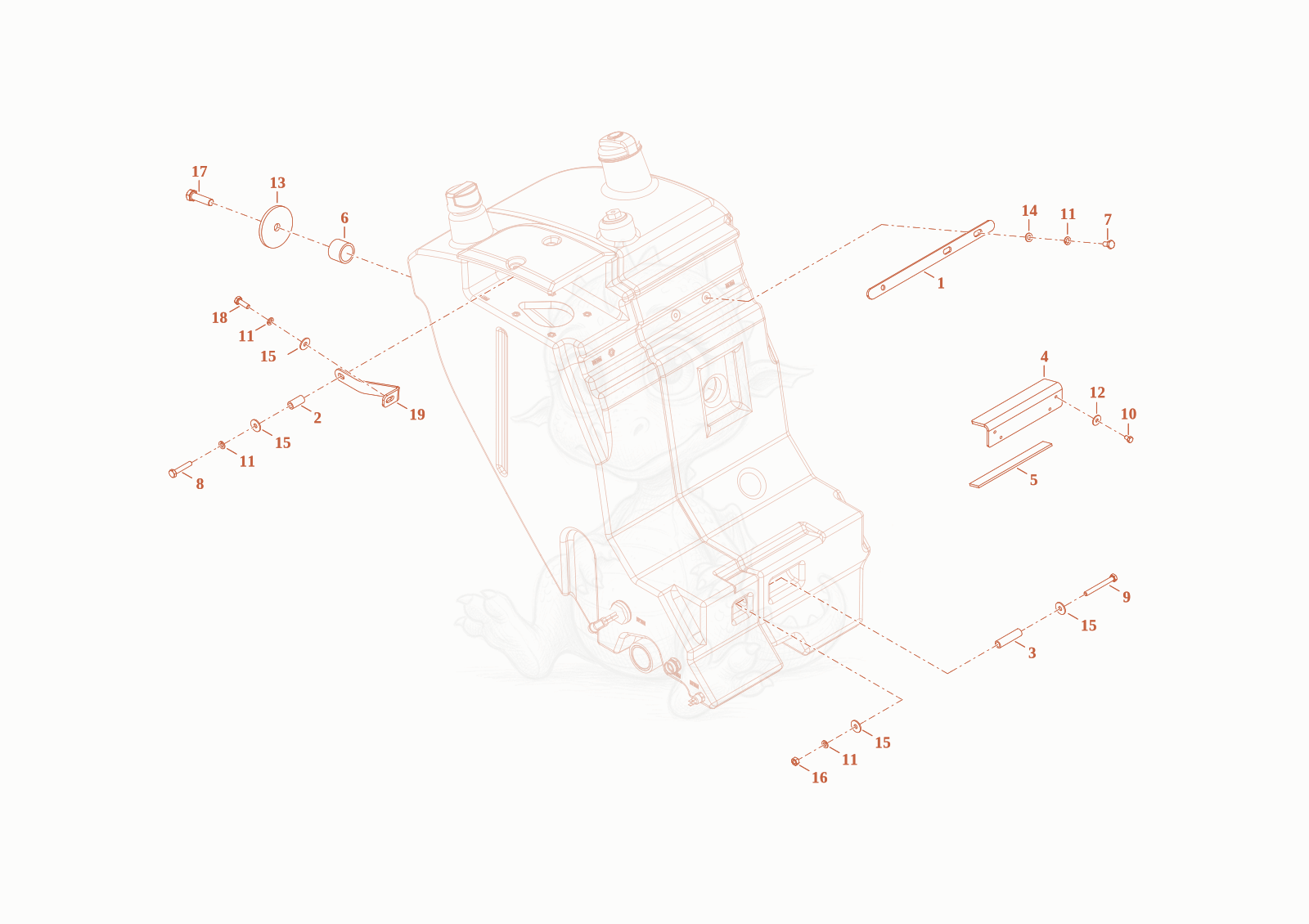

TH522STAGEV mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000277004
    $109.15
    connection element - 1000277004×1
  • 21000277094
    $33.51
    Sleeve - 1000277094×1
  • 31000276990
    $37.50
    Sleeve - 1000276990×1
  • 41000279156
    $98.90
    fastener rail - 1000279156×1
  • 51000277006
    $5.29
    rubber strip - 1000277006×1
  • 61000277003
    $39.40
    Sleeve - 1000277003×1
  • 71000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 81000047430Not stocked
    hex screw×1
  • 91000047265Not stocked
    hex screw×1
  • 101000085493
    $0.78
    socket head screw M8x12-8.8 A2C DIN912 - 1000085493×4
  • 111000022016Not stocked
    spring washer×6
  • 121000013027Not stocked
    washer×4
  • 131000146370
    $13.41
    WASHER - 1000146370×1
  • 141000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 151000124882
    $1.11
    Body washer 10,5x30x2,5 - 1000124882×4
  • 161000015407Not stocked
    hexagon nut×1
  • 171000047863Not stocked
    hex screw×1
  • 181000015364Not stocked
    hex screw×1
  • 191000292785
    $79.40
    connection bar - 1000292785×1
