TH522

TH522STAGEV fuel system Diagram

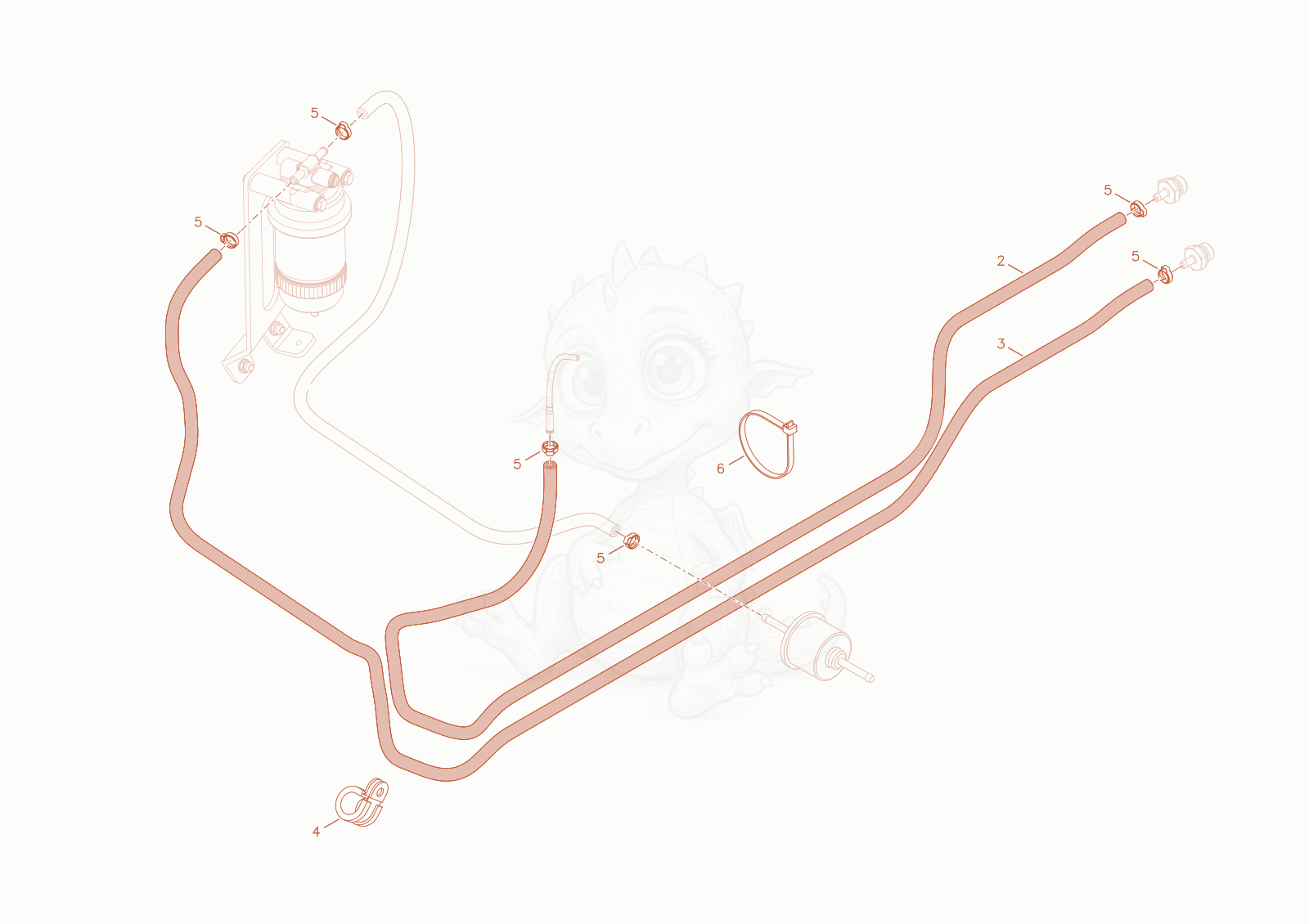

Exploded parts diagram of the fuel system of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000527471
    $5.73
    Fuel hose 8,0x3,0mm - 1000527471×1
  • 21000353239Not stocked
    fuel line×1
  • 31000221999
    $34.72
    Hose - 1000221999×1
  • 41000223497
    $6.79
    Clamp - 1000223497×1
  • 51000392134Not stocked
    clamp×8
  • 61000193759
    $0.36
    cable strap - 1000193759×10
