Neuson 12002RDV

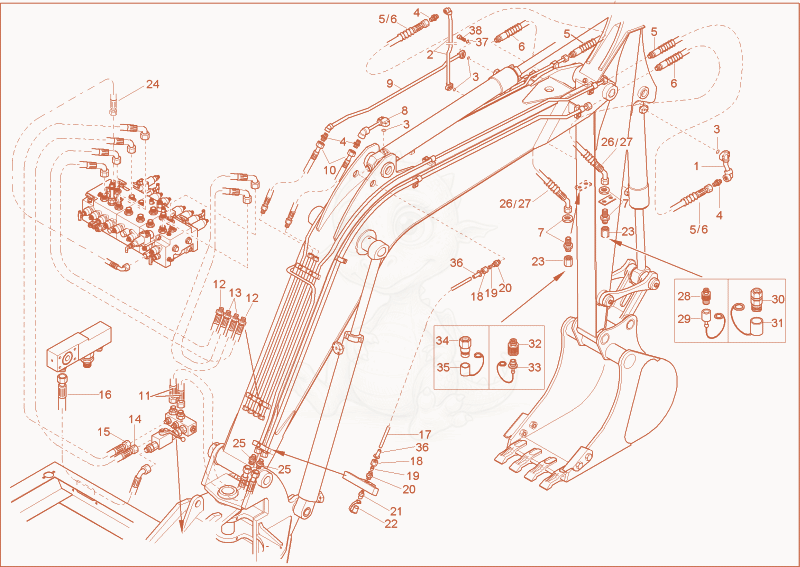

12002RD DIPPER ARM INSTALLATION Diagram
- 11000019127Not stockedhydraulic pipe×1
- 21000019128Not stockedhydraulic pipe×1
- O-RING - 1000015678×4
- 41000083076Not stockedscrew joint×4
- 51000113855Not stockedHose×2
- 61000077692Not stockedHose×2
- 71000020799Not stockedlock screw connection×2
- 81000094639Not stockedhydraulic pipe×1
- 91000092990Not stockedhydraulic pipe×1
- 101000113856Not stockedHose×2
- 111000077851Not stockedHose×2
- 121000077648Not stockedHose×2
- 131000077649Not stockedHose×2
- 141000077849Not stockedHose×1
- 151000077850Not stockedHose×1
- 161000077918Not stockedHose×1
- lubrication line PA12 H 6x1,5mm - 1000098195×2.25
- 181000015536Not stockedunion nut×2
- D6LL - 1000015537×2
- 201000015532Not stockedscrew joint×2
- 211000015475Not stockedgrease nipple×1
- 221000015480Not stockedcap grease nipple×1
- locking cap - 1000082960×2
- 241000077655Not stockedHose×1
- 251000082888Not stockedscrew joint×2
- 261000113858Not stockedHose×2
- 271000077890Not stockedHose×2
- 281000012956Not stockedscrew coupling×1
- 291000012959Not stockedprotecting cap×1
- quick lock coupling - 1000109375×1
- dust cap - 1000109419×1
- 321000012957Not stockedscrew coupling×1
- 331000012958Not stockedprotecting cap×1
- quick lock coupling - 1000109374×1
- dust cap - 1000109418×1
- plug sleeve - 1000152581×2
- cheese head screw - 1000099330×4
- spring washer - 1000082617×4
