Neuson 12002RDV

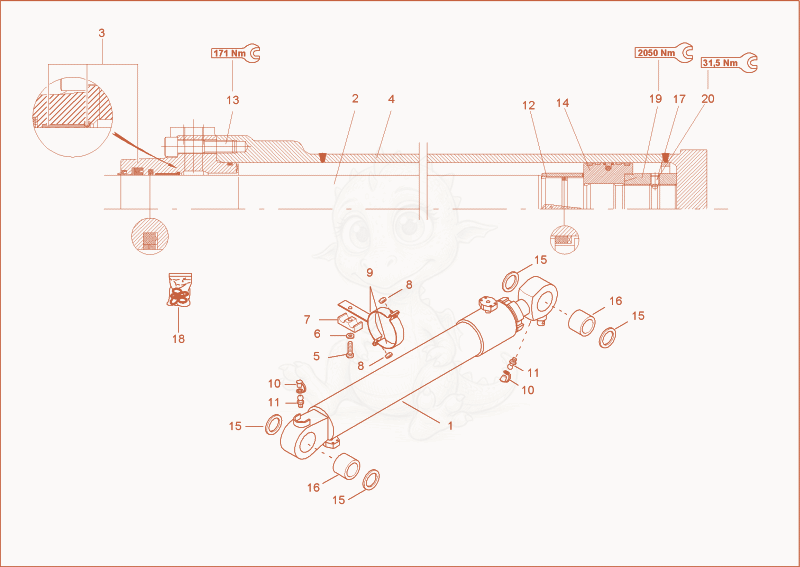

12002RD boom cylinder Diagram

Exploded parts diagram of the boom cylinder of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000063689Not stocked
    boom cylinder×2
  • 21000063886Not stocked
    piston rod×1
  • 31000063887Not stocked
    repairing set cylinder head×1
  • 41000063885Not stocked
    cylinder pipe×1
  • 51000085370
    $1.35
    hex screw - 1000085370×1
  • 61000049219Not stocked
    washer×1
  • 71000012920Not stocked
    pipe clamp×1
  • 81000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 91000063718Not stocked
    clamp×1
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000015476Not stocked
    grease nipple×2
  • 121000093018Not stocked
    bushing shock absorber×1
  • 131000063903Not stocked
    socket cap screw×12
  • 141000063906Not stocked
    piston×1
  • 151000093015
    $36.32
    PIN GASKET - 1000093015×4
  • 161000019393Not stocked
    bushing×2
  • 171000063914Not stocked
    steel ball×1
  • 181000002268Not stocked
    cylinder seal kit×1
  • 191000063911Not stocked
    nut×1
  • 201000063912Not stocked
    screw×1
