Neuson 12002RDV

12002RD lub oil system Diagram

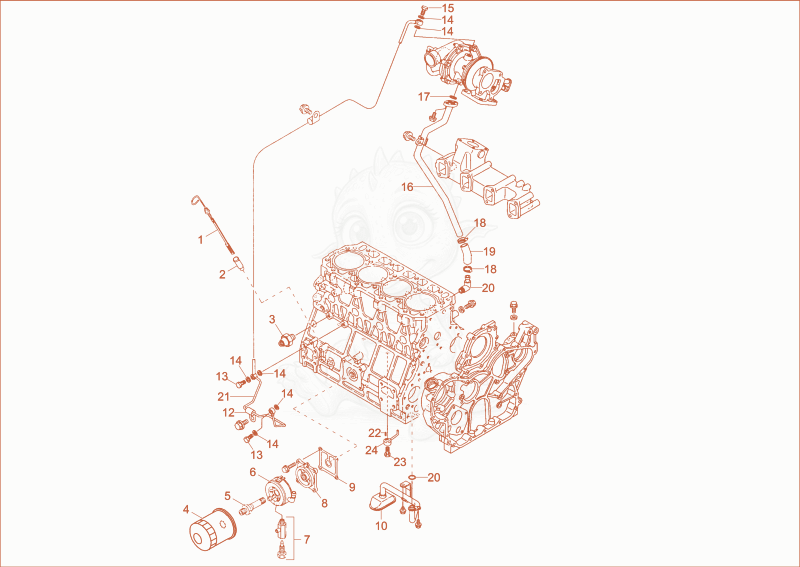

Exploded parts diagram of the lub oil system of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000157236Not stocked
    oil dip stick×1
  • 21000035792Not stocked
    pipe line×1
  • 31000003891Not stocked
    oil pressure switch×1
  • 41000018587Not stocked
    engine oil filter×1
  • 51000157235Not stocked
    screw joint×1
  • 61000096784Not stocked
    oil cooler×1
  • 71000074223
    $50.71
    drain valve - 1000074223×1
  • 81000157404Not stocked
    bracket×1
  • 91000063375Not stocked
    engine gasket×1
  • 101000157405Not stocked
    suction tube×1
  • 111000001015Not stocked
    o-ring×1
  • 121000157245Not stocked
    clamp×1
  • 131000126817
    $9.20
    Banjo bolt - 1000126817×1
  • 141000085207
    $1.57
    seal ring - 1000085207×6
  • 151000143643
    $9.70
    Banjo bolt - 1000143643×1
  • 161000157246Not stocked
    pipe line×1
  • 171000001015Not stocked
    o-ring×1
  • 181000143646Not stocked
    hose clamp×2
  • 191000114010Not stocked
    engine oil hose×1
  • 201000143645Not stocked
    angle screw joint×1
  • 211000185064
    $51.67
    pipe line - 1000185064×1
  • 221000107723
    $1.95
    spring pin - 1000107723×3
  • 231000035815
    $57.52
    valve - 1000035815×3
  • 241000375260Not stocked
    nozzle×3
