Neuson 12002RDV

12002RD 8/2 VALVE (OPTION) Diagram

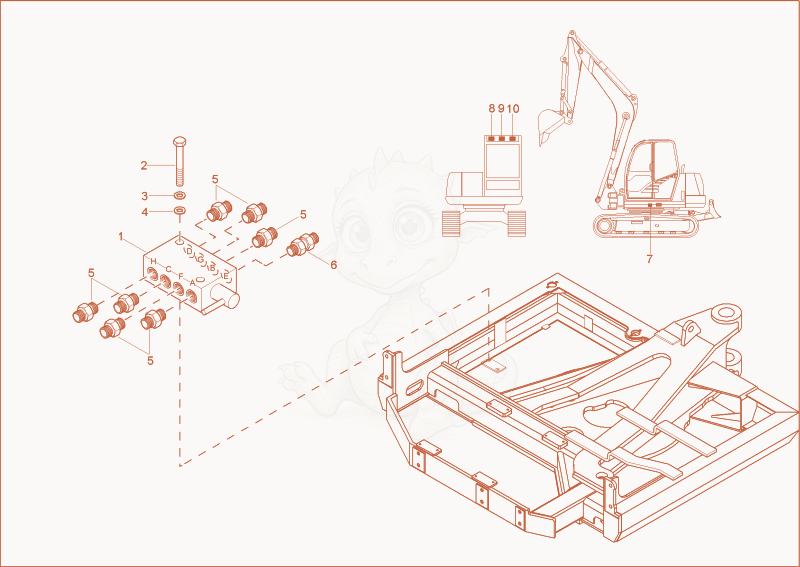

Exploded parts diagram of the 8/2 VALVE (OPTION) of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000264071
    $331.51
    Valve 1000264071×1
  • 21000015341Not stocked
    hex screw×2
  • 31000015436Not stocked
    lock washer×2
  • 41000015430Not stocked
    washer×2
  • 51000015488Not stocked
    screw joint×7
  • 61000083163Not stocked
    non return valve×1
  • 71000080818Not stocked
    sticker selection valve×1
  • 81000080525Not stocked
    sticker dozer blade×1
  • 91000080890Not stocked
    sticker boom down×1
  • 101000080534
    $28.50
    sticker boom left - 1000080534×1
