Neuson 12002RDV

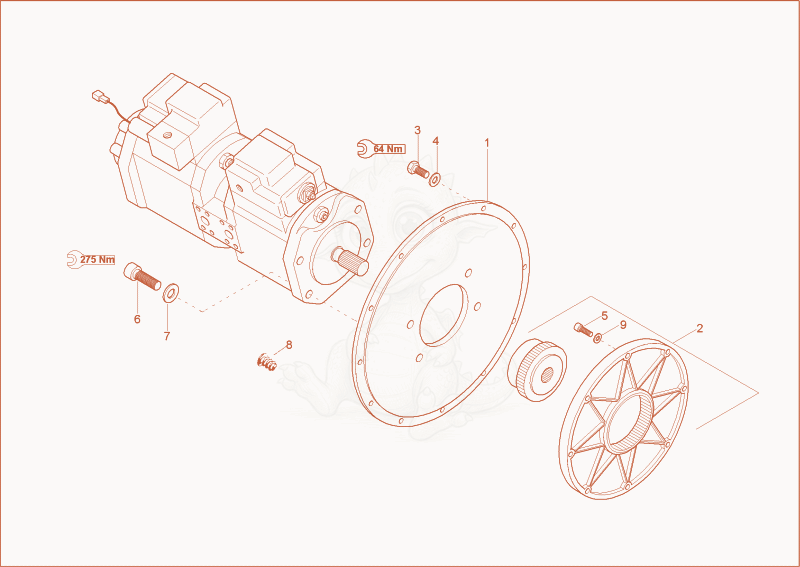

12002RD HYDRAULIC PUMP DRIVE Diagram

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351747Not stocked
    pump carrier×1
  • 21000063778
    $302.40
    coupling - 1000063778×1
  • 31000015364Not stocked
    hex screw×12
  • 41000015438Not stocked
    lock washer×12
  • 51000085469
    $1.00
    cheese head screw - 1000085469×8
  • 61000015383Not stocked
    cheese head screw×4
  • 71000015439Not stocked
    lock washer×4
  • 81000082836
    $2.84
    clutch disc plug - 1000082836×1
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
