Neuson 12002RDV

12002RD bucket cylinder Diagram

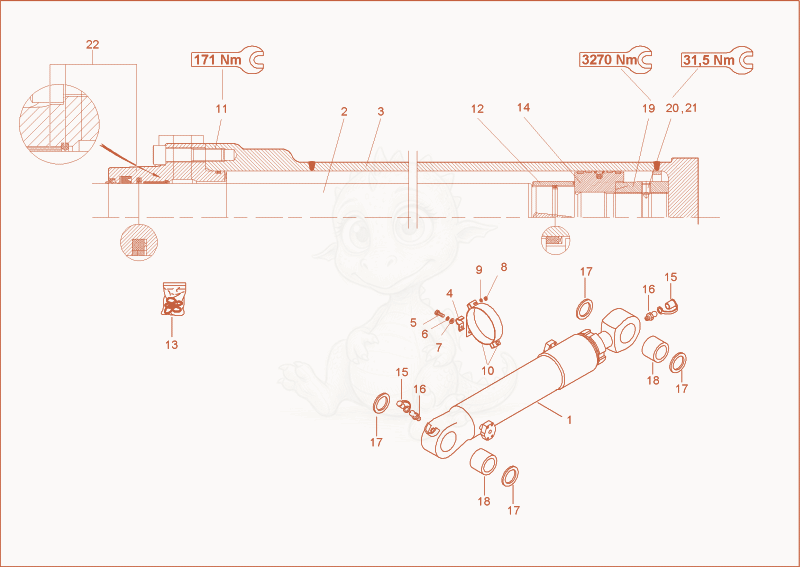

Exploded parts diagram of the bucket cylinder of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000063685Not stocked
    bucket cylinder×1
  • 21000002218Not stocked
    piston rod×1
  • 31000063890Not stocked
    cylinder pipe×1
  • 41000015634Not stocked
    pipe clamp×1
  • 51000085417
    $1.06
    hex screw - 1000085417×1
  • 61000082609
    $0.73
    lock washer - 1000082609×1
  • 71000049219Not stocked
    washer×1
  • 81000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 101000063719Not stocked
    clamp×1
  • 111000063903Not stocked
    socket cap screw×12
  • 121000093030Not stocked
    bushing shock absorber×1
  • 131000002268Not stocked
    cylinder seal kit×1
  • 141000063906Not stocked
    piston×1
  • 151000015480Not stocked
    cap grease nipple×2
  • 161000015476Not stocked
    grease nipple×2
  • 171000093029Not stocked
    seal×4
  • 181000063939
    $190.11
    BUSHING - 1000063939×2
  • 191000063911Not stocked
    nut×1
  • 201000063912Not stocked
    screw×1
  • 211000063914Not stocked
    steel ball×1
  • 221000063891Not stocked
    repairing set cylinder head×1
