Neuson 12002RDV

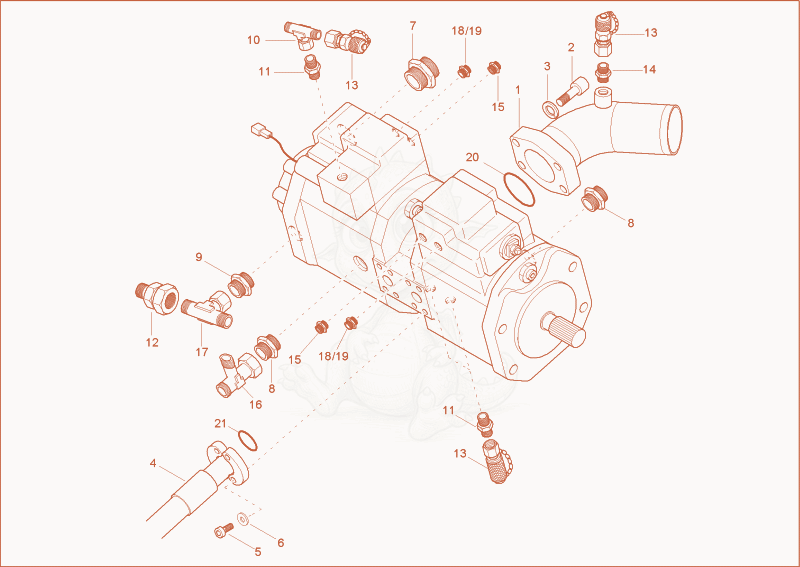

12002RD HYDRAULIC PUMP 2 Diagram

Exploded parts diagram of the HYDRAULIC PUMP 2 of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000063707Not stocked
    suction flange×1
  • 21000022173Not stocked
    cheese head screw×4
  • 31000022017Not stocked
    spring washer×4
  • 41000077788Not stocked
    Hose×2
  • 51000085503
    $0.93
    cheese head screw - 1000085503×8
  • 61000015449Not stocked
    northlock disc×8
  • 71000082990
    $26.72
    GE28LR3/4OROMDA3C - 1000082990×1
  • 81000082964
    $5.16
    GE15LR1/2OROMDA3C - 1000082964×2
  • 91000082970
    $10.84
    GE12LR1/2OROMDA3C - 1000082970×1
  • 101000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 111000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×5
  • 121000015531Not stocked
    screw joint×1
  • 131000000575Not stocked
    minimess point×4
  • 141000015488Not stocked
    screw joint×1
  • 151000468097Not stocked
    filter×2
  • 161000015539Not stocked
    screw joint×1
  • 171000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 181000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×2
  • 191000083017
    $19.95
    GE08SR1/4OROMDA3C - 1000083017×2
  • 201000133048Not stocked
    o-ring×1
  • 211000083620
    $1.16
    o-ring - 1000083620×2
